1955-57 Chevrolet Car Frames & Chassis

Progressive Automotive, 1955, 1956, 1957, chevy, Chevrolet, chassis, frame, belair, hardtop, convertible, nomad, delivery, handyman, wagon

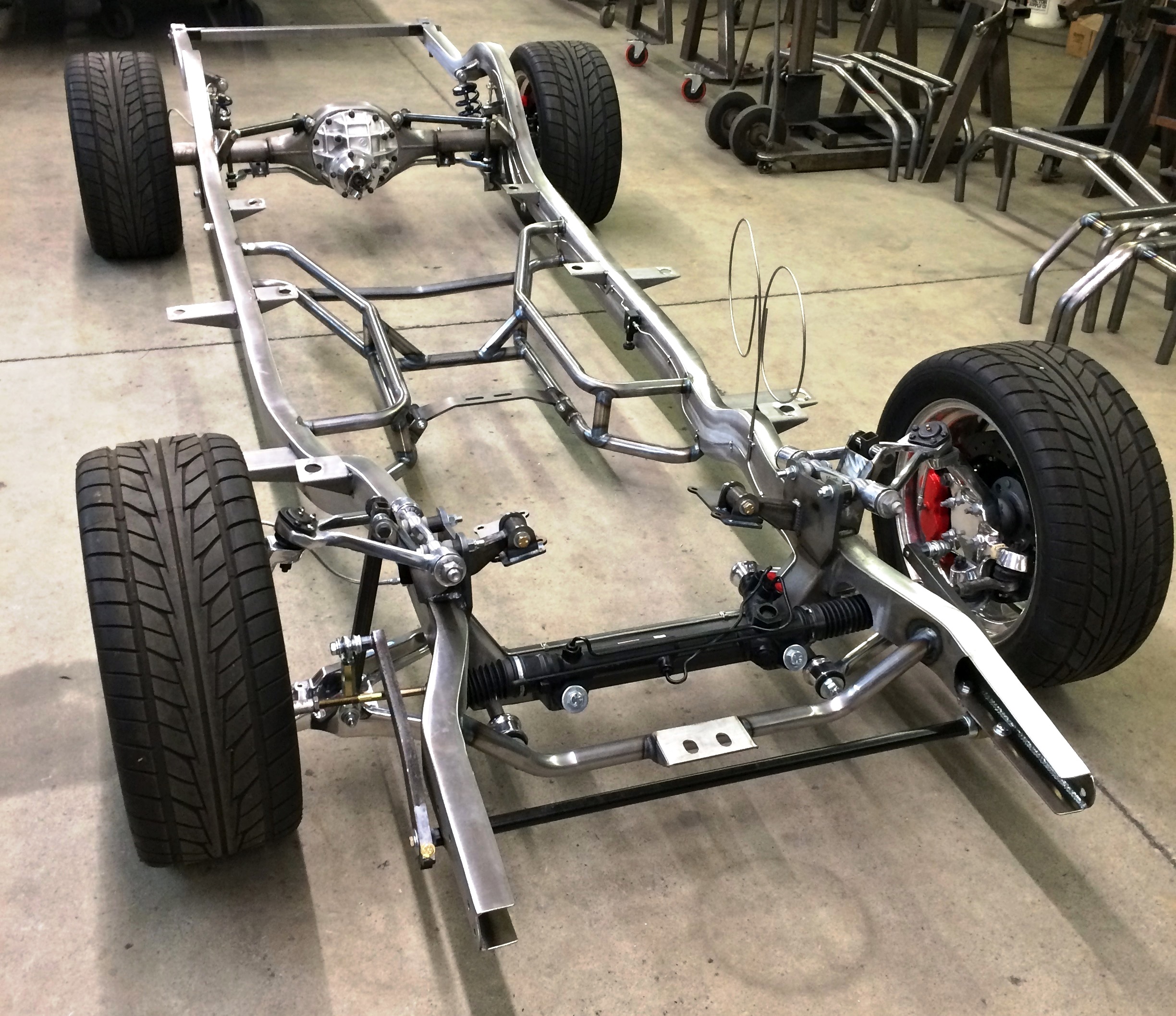

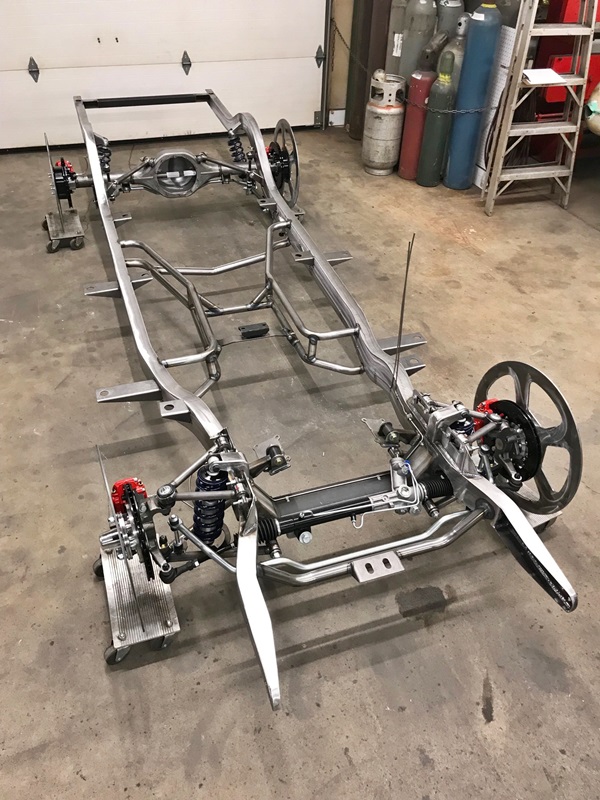

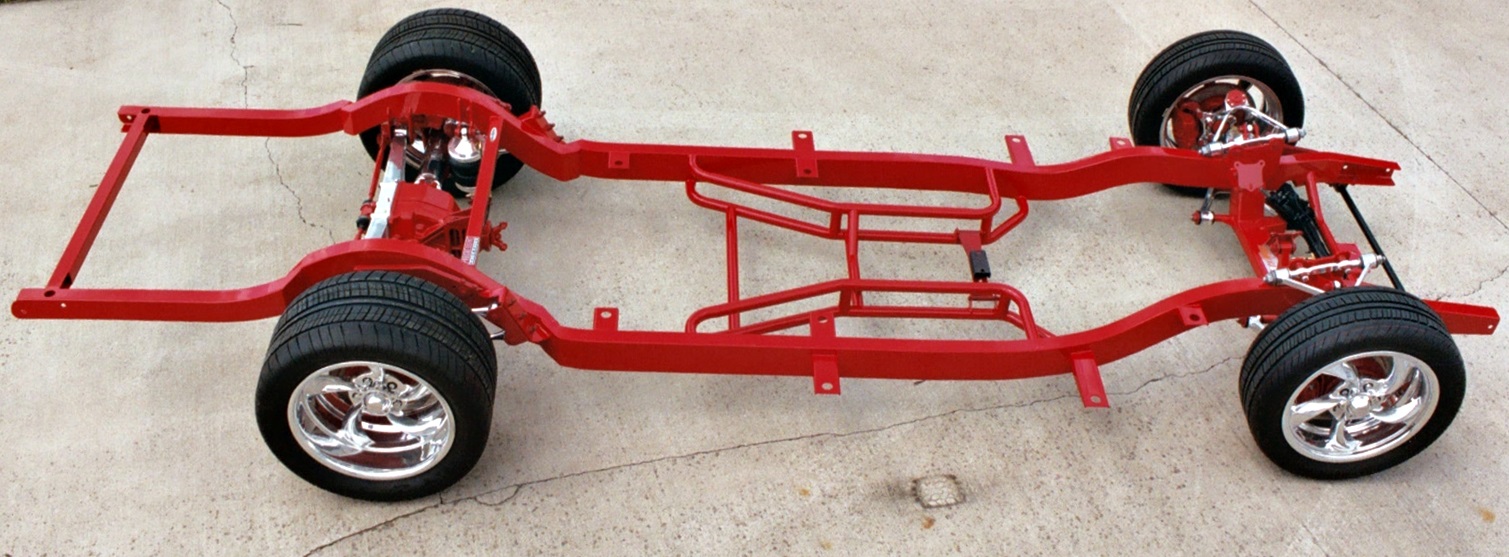

  These frames & rolling chassis are designed to fit 1955, 1956 and 1957 Chevrolet cars. Call for information and pricing for your specific frame or chassis needs. Proudly manufactured at our shop in Baltimore Ohio.

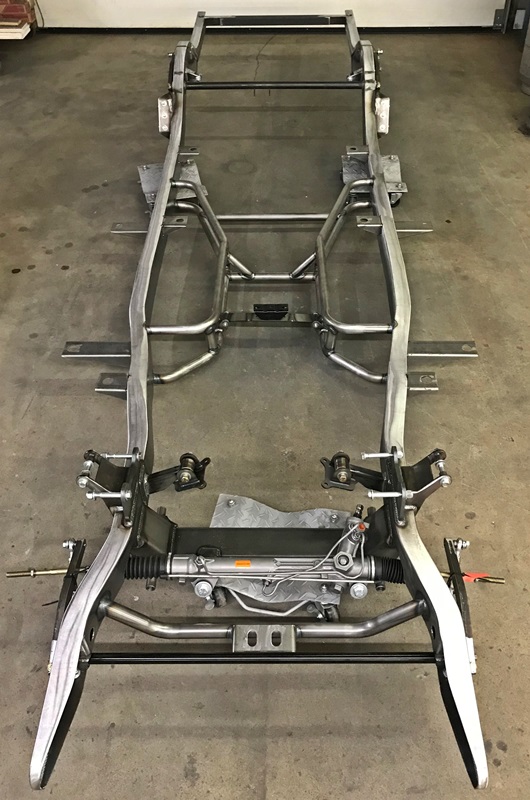

  Our hot rod frames feature our new boxed frame rails, constructed from 10 gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded and the corner welds smoothed.

  Unlike the original Chevrolet frame, our street rod frames incorporate our tubular crossmember. Not only does this create a stronger frame, but it allows room for all of the popular transmissions.

 Other options are available, such as Custom ride heights, Air ride, brake upgrades, new 3rd members and Kugel Suspension.



Frames

1955-57 Chevy car frame, with:

                Radiator core support mount

                Tube X member with Transmission crossmember

                Vulcanized G.M. transmission mount

                Frame Rails boxed

                Body mounts, tack welded into place

                                                                                        CJ2   $4,470



1955-57 Chevy car frame, with:

                Rear frame rails narrowed 2” per side for wider rear wheel & tire

                Radiator core support mount

                Tube X member with Transmission crossmember

                Vulcanized G.M. transmission mount

                Frame Rails boxed

                Body mounts, tack welded into place

                May require Body modification, dependent on rear suspension

                                                                                        CJ3   $5,270



1955-57 Chevy car frame, with:

                *Rear Frame rails narrowed more than 2” per side

                  *Can be narrowed to a total of 23” outside to outside

                Radiator core support mount

                Tube H member with Transmission crossmember

                Vulcanized G.M. transmission mount

                Frame Rails boxed

                Body mounts, tack welded into place

                Requires Body modification and custom gas tank

                                                                                        CJ4   $5,510



Add-Ons for Frames

Click on the link for that Add-On Products page.



Under floor Brake Pedal  installed on Frame

Brake pedal and booster/master cylinder mount installed  add $385



Motor Mounts installed on Frame

 Note, Motor mounts are only installed when we are installing the front & rear suspension for proper drive line angle and clearances.

1965-89 SBC, BBC or LT1/LT4 Chevy Pro motor mounts, installed           add $485



*LS Series Chevy Pro motor mounts, installed       add $485

  *Also includes 6.0/5.3/4.8 G.M. motors



Front Suspension or Bracket Kits installed on Frame

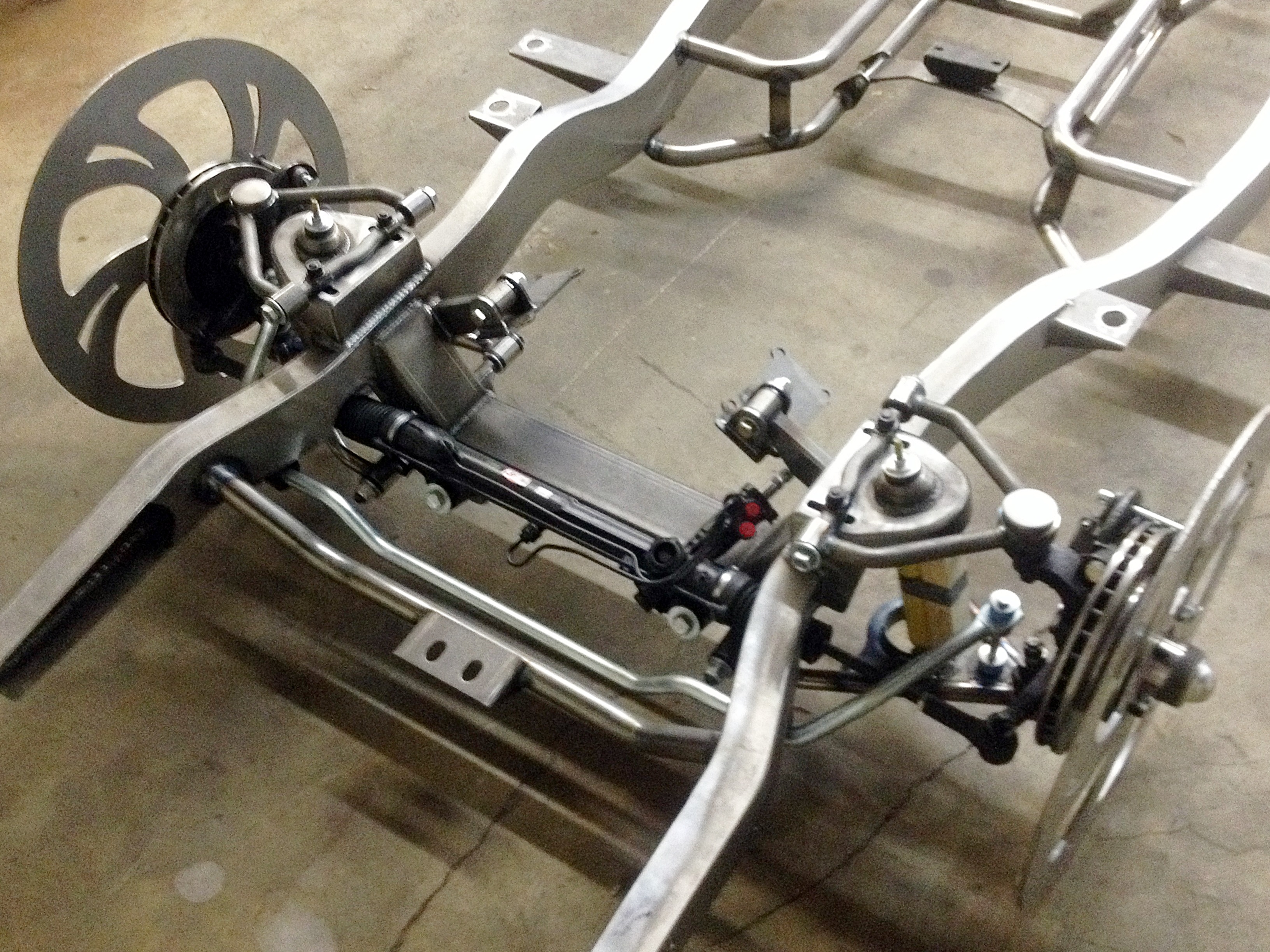

Mustang II based front suspension, installed, with:

                Upper control arm mounts

                Lower crossmember

                Tubular upper control arms, steel

                T-Bolts & Nuts

                Tubular lower control arms, steel

                Gas Shocks

                5 x 4.75″ GM Big Brake rotors & G.M. Calipers

                PA-30 springs

                Urethane Spring Insulators

                Power or Manual rack & pinion

                Rack bushings

                Tie rod ends

                2″ Drop or Stock Spindles

                Front Sway Bar

                                                                                        add $2,885

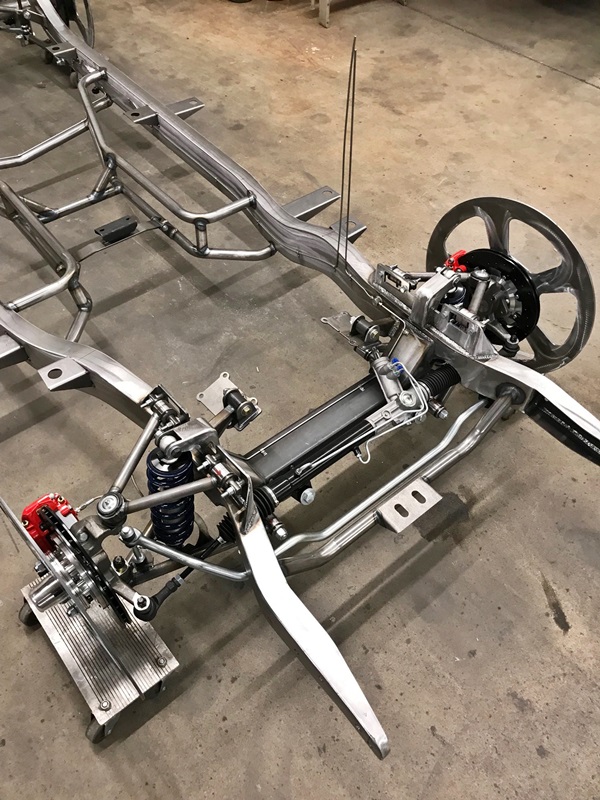

1984-87/1988-96 C4 Corvette front suspension brackets, installed with:

                Crossmember/upper arm mounts

                Coil-over or Shockwave mounts

                Urethane Lower control arm bushings and hardware

                RQ Ride Tech front coil-overs with Hyperco springs

                Power rack & pinion with mounting bushings

                Narrowed             add $2,435

                Stock C4 width     add $2,600



1988-96 Sweet Ryde C4 Corvette front suspension, installed, with:

                Crossmember/upper arm mounts

                Coil-over or Shockwave mounts

                Urethane Lower control arm bushings and hardware

                RQ Ride Tech front coil-overs with Hyperco springs

                Power rack & pinion with mounting bushings

                Front Sway Bar

                 *Narrowed

                *Used 1988-96 Vette Suspension, 12 1/4″ brake system

                *Non refurbished, No warranty on parts other than being straight parts

                *Specify Stock C4 hub width or narrowed hub width

                                                                                        add $4,355



Rear Suspension installed on Frame

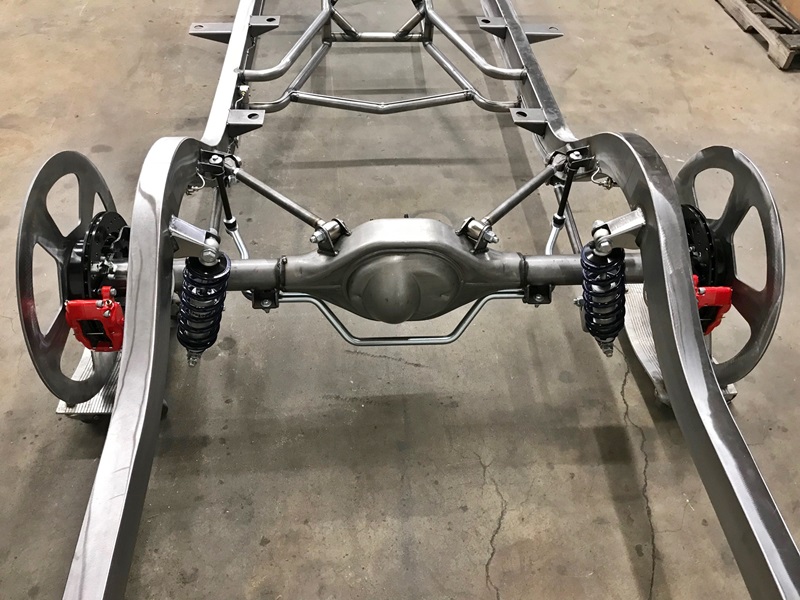

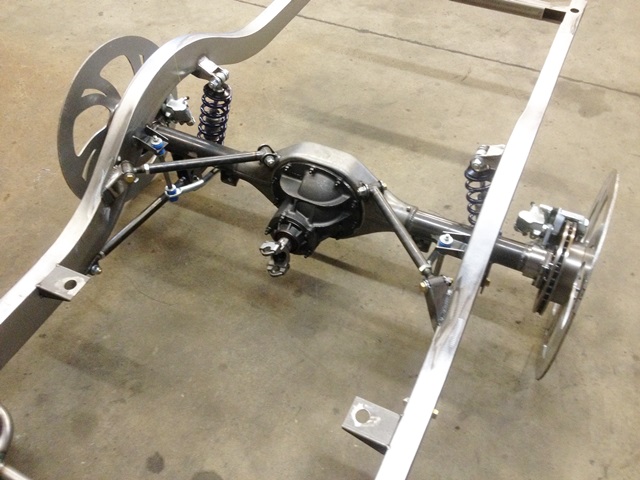

Triangulated 4-bar rear suspension, installed with:

                Upper bars, steel

                Lower bars, steel

                Frame brackets

                Rear axle brackets

                RQ Ride Tech rear coil-overs with Hyperco springs

                *For CJ2 frame only

                                                                                        add $1,655



Parallel 4-bar rear suspension, installed with:

                Link bars, steel

                Frame brackets

                Rear axle brackets

                Upper coil-over mounts

                Panhard bar and brackets

                RQ Ride Tech rear coil-overs with Hyperco springs

                *For CJ3 frame only

                                                                                        add $2,115



Pro-Street 4- bar rear suspension, installed with:

                Link bars, steel

                Frame brackets

                Rear axle brackets

                Panhard bar and brackets

                RQ Ride Tech rear coil-overs with Hyperco springs

                *For CJ4 frame only

                                                                                        add $2,115



1984-87 or 1988-96 C4 Corvette rear brackets, installed with:

                Trailing bar mounts

                Coil-over mounts

                Pinion mounts

                Rear Cover mounts

                RQ Ride Tech rear coil-overs with Hyperco springs

                *For stock width C4 rear end, For CJ2 frame only

                                                                                        add $2,075





1984-87 or 1988-96 C4 Corvette rear brackets, installed with:



                Trailing bar mounts



                Coil-over mounts



                Pinion mounts



                Rear Cover mounts



                RQ Ride Tech rear coil-overs with Hyperco springs

                Narrow Vette rear parts and include:

                                Steel camber bars

                                Urethane rear cover bushing

                *Narrowed C4 rear end, For CJ3 frame only

                                                                                        add $3,300



Rear Ends installed on Frame

9″ Ford rear, installed, with:

                New heavy duty tapered center

                1/4″ wall axle tubes

                Billet flanges

                Stainless breather vent

                New Hardened 28 or 31 spline axles

                Wheel studs, 4.5″ Ford or 4.75″ GM bolt pattern

                Axle seals

                Bearings

                Bearing retainers

                Center section studs

                10.5” Disc brakes with parking brake in calipers

                                                                                        add $2,245



*Used 1988-96 C4 Corvette rear, Dana 36, installed, with:

                Half Shafts

                Rear Cover

                Toe-in Adjuster

                Trailing bars

                Hub Carriers

                Rotors

                Calipers

                Center Section

                *Non refurbished, No warranty on parts other than being straight parts

                                                                                        add $1,535
