1928-31 Ford Cars & Truck Frames & Chassis

Progressive Automotive, 1928, 1929, 1930, 1931, Ford, chassis, frame,  truck, panel, car, coupe, Sedan, roadster, cabriolet

 These frames & rolling chassis are designed to fit 1928, 1929, 1930 and 1931Ford cars and  short bed trucks. Call for information and pricing for your specific frame or chassis needs. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 7 gauge (3/16”) steel. Our rails are Z’ed for a lower rear ride height.

 Other chassis options are available, such as Custom ride heights, Air ride, brake upgrades, new 3rd members and Kugel Suspension. Call us for a quote  tailored for you.

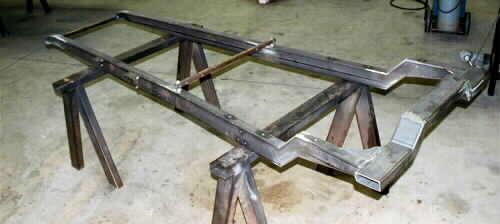

Bare Frames

1928-31 Ford Model A frame, with:                                    FA2   $2,250

                   1932 Ford style cross spring crossmember

                   Hood & Cowl mounts

                   Drop tube transmission mount crossmember, not installed

                   Front bumper iron holes drilled

                   Fender brace holes drilled

                   Running board brace holes are threaded

                   Body mounting nuts welded into the frame rails

                   *4″ Z’ed rear frame rails for lower rear stance

                   *Requires Floor modification



1928-31 Ford Model A frame, with:                                    FA4   $3,320

                   1932 Ford style cross spring crossmember

                   Hood & Cowl mounts,

                   Drop tube transmission mount crossmember, not installed.

                   Front bumper iron holes drilled.

                   Fender brace holes drilled

                   Running board brace holes are threaded.

                   Body mounting nuts welded into the frame rails

                   4″ Z’ed rear frame rails for lower rear stance.

                   Rear frame rails are narrowed up to 23″ wide for

                   wide rear tires and 1984-96 Corvette rear applications.

                   Requires Floor modification & Body tubs for wider tires.






Frames with Bracketry

FA2 base frame with:                                    FA2-A-T-F   $4,945

                  Chevy motor mounts, automatic style brake pedal,

                  Triangulated 4-bar rear suspension, Ride Tech RQ rear coil overs.

                  No front suspension brackets or rear axle.



FA4 base frame with:                                    FA4-A-P-F   $6,050

                  Chevy motor mounts, automatic style brake pedal,

                  Parallel 4-bar rear suspension, Ride Tech  RQ rear coil overs.

                  No front suspension brackets or rear axle.



FA4 base frame with:                                    FA4-A-LV-F   $7,980

                  Chevy motor mounts, automatic style brake pedal,

                 *1984-96 C4 Corvette rear suspension bracketry,

                 Ride Tech RQ rear coil overs.

                 No front suspension or rear axle.

                 *Narrowing customer’s supplied C4 rear parts included

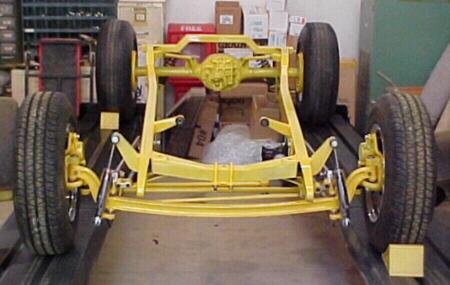

Rolling Chassis

FA2 base frame with:                                    FA2-SR-T-C   $9,770

                 Chevy motor mounts, automatic style brake pedal,

                 Triangulated 4-bar rear suspension, Ride Tech RQ rear coil overs,

                 New 9″ Ford rear housing with matched axles,

                 10.5″ rear disc brake with parking brake, and our complete

                 Mustang based coil spring style front suspension with 5 x 4.75″ brakes,

                 manual rack & pinion.

                 *3rd member additional.



FA4 base frame with:                                    FA4-SR-P-C   $11,410

                 Chevy motor mounts, automatic style brake pedal,

                 Parallel 4-bar rear suspension, panhard bar, Ride Tech RQ rear coil overs,

                 new 9″ Ford rear housing with matched axles,

                 10.5″ rear disc brake with parking brake, and our complete Mustang based

                 coil spring style front suspension with 5 x 4.75″ brakes, manual rack & pinion.

                 *3rd member additional



FA4 base frame with:                                    FA4-SR-V-C   $12,515

                Chevy motor mounts, automatic style brake pedal,

                *used 1988-96 Corvette rear suspension with Dana 36 (narrowed),

                Ride Tech RQ rear coil overs, and our complete Mustang based coil spring style

                front suspension with 5 x 4.75″ brakes, manual rack & pinion.

                *Non refurbished, guaranteed straight, non broken/bent aluminum parts
