1948-52 Ford Truck Frames & Chassis

Progressive Automotive, 1948, 1949, 1950, 1951, 1952, Ford, F1, chassis, frame, panel, truck

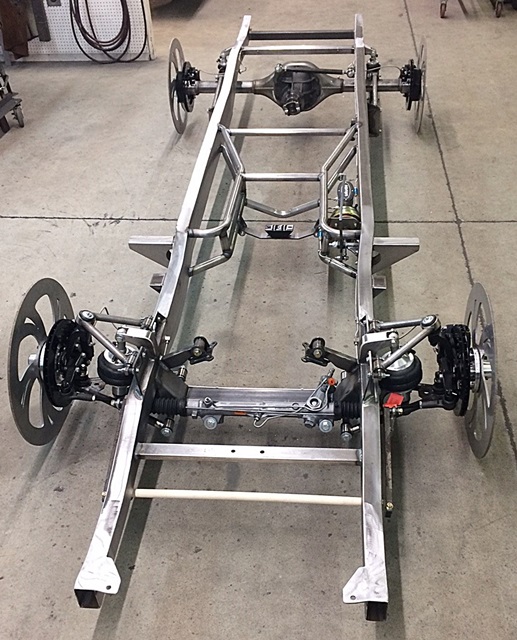

 These frames & rolling chassis are designed to fit 1948, 1949, 1950, 1951 and 1952 Ford short bed trucks only. For Long bed trucks, inquire. Call for information and pricing for your specific frame or chassis needs. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10 gauge steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded and the corner welds smoothed.

  Unlike the original Ford frame, our street rod frames incorporate our tubular crossmember. Not only does this create a stronger frame, but it allows room for all of the popular transmissions.

 Other options are available, such as Custom ride heights, Air ride, brake upgrades, new 3rd members and Kugel Suspension.





Frames

1948-52 Ford truck &  panel truck frame, with:

                Tube X member with Transmission crossmember

                Vulcanized transmission mount

                Frame Rails boxed

                Front & Rear bumper iron holes

                Running board brace holes, drilled & threaded

                Cab mounts, welded into place

                                                                              FTF2   $3,3330



Add-Ons for Frames

Click on the link for that Add-On Products page.



Brake/Clutch Pedals  installed on Frame

Brake pedal and booster/master cylinder mount installed  add $415



Brake &Hydraulic Clutch pedal and booster/master cylinder mount installed   add $630



Motor Mounts installed on Frame

 Note, Motor mounts are only installed when we are installing the front & rear suspension for proper drive line angle and clearances.

1965-89 SBC, BBC or LT1/LT4 Chevy Pro motor mounts, installed           add $485



*LS Series Chevy Pro motor mounts, installed       add $485

  *Also includes 6.0/5.3/4.8 G.M. motors



Ford Pro motor mounts, installed       add $605



Chrysler Pro motor mounts, installed       add $580

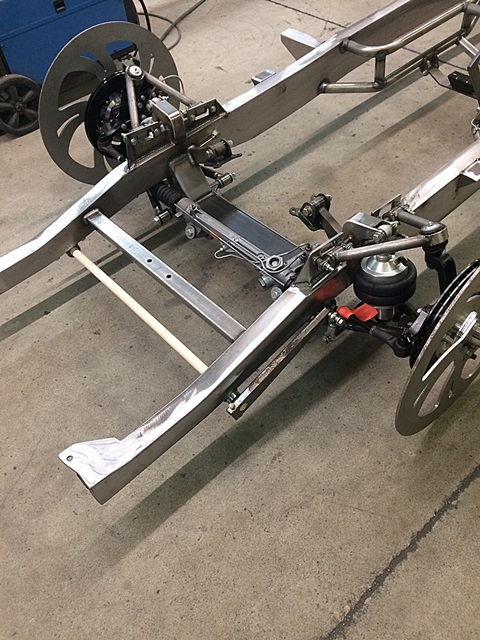

Front Suspension or Bracket Kits installed on Frame

Mustang II based front suspension, installed, with:

                Upper control arm mounts

                Lower crossmember

                Tubular upper control arms, steel

                T-Bolts & Nuts

                Tubular lower control arms, steel

                Gas Shocks

                5 x 4.75″ GM Big Brake rotors & G.M. Calipers

                PA-30 springs

                Urethane Spring Insulators

                Power or Manual rack & pinion

                Rack bushings

                Tie rod ends

                2″ Drop or Stock Spindles

                Front Sway Bar

                                                                              add $3,000



1984-87/1988-96 C4 Corvette front suspension brackets, installed with:

               Crossmember/upper arm mounts

               Coil-over or Shockwave mounts

               Urethane Lower control arm bushings and hardware

               RQ Ride Tech front coil-overs with Hyperco springs

               Power rack & pinion with mounting bushings

                                                                              add $2,725



1988-96 Sweet Ryde C4 Corvette front suspension, installed, with:

               Crossmember/upper arm mounts

               Coil-over or Shockwave mounts

               Urethane Lower control arm bushings and hardware

               RQ Ride Tech front coil-overs with Hyperco springs

               Power rack & pinion with mounting bushings

               Front Sway Bar

               *Used 1988-96 Vette Suspension, 12 1/4″ brake system

               *Non refurbished, No warranty on parts other than being straight parts

                                                                              add $4,645



Rear Suspension installed on Frame

Rear leaf spring suspension, installed with:

                Leaf springs

                Front hangers

                Rear shackles bushings and tubes

                Rear shackle hangers

                U-bolts

                Spring retainer plates

                Axle pads

                Shocks

                                                                              add $1,270

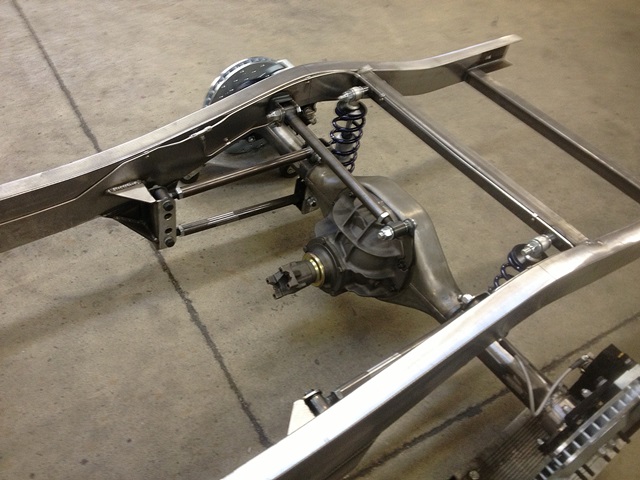

Parallel 4-bar rear suspension, installed with:

                Link bars, steel

                Frame brackets

                Rear axle brackets

                Upper coil-over mounts

                Panhard bar and brackets

                RQ Ride Tech rear coil-overs with Hyperco springs

                                                                              add $2,115



1984-87 or 1988-96 C4 Corvette rear brackets, installed with:

                Trailing bar mounts

                Coil-over mounts

                Pinion mounts

                Rear Cover mounts

                RQ Ride Tech rear coil-overs with Hyperco springs

                                                                              add $2,2075



Rear Ends installed on Frame

9″ Ford rear, installed, with:

                New heavy duty tapered center

                1/4″ wall axle tubes

                Billet flanges

                Stainless breather vent

                New Hardened 28 or 31 spline axles

                Wheel studs, 4.5″ Ford or 4.75″ GM bolt pattern

                Axle seals

                Bearings

                Bearing retainers

                Center section studs

                10.5” Disc brakes with parking brake in calipers

                                                                              add $2,245



*Used 1988-96 C4 Corvette rear, Dana 36, installed, with:

                Half Shafts

                Rear Cover

                Toe-in Adjuster

                Trailing bars

                Hub Carriers

                Rotors

                Calipers

                Center Section

                *Non refurbished, No warranty on parts other than being straight parts

                                                                              add $1,535
