Vintage Rods & Customs 1931 Chevrolet sedan with Progressive Automotive chassis.



 These frames & rolling chassis are designed to fit 1931 & 1932 Chevrolet cars and 1931, 1932 & 1933 Chevrolet trucks. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

  Unlike the original Chevrolet frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

  Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

Bare 1931-32 Car/1931-33 1/2 ton truck frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, running board brace holes, body mounts spot welded in place, rear coil-over crossmember and capped for bumper mounting. Starting at $6,375



Example of rolling chassis, contact us for a quote.

1931-32 Car/1931-33 1/2-ton truck frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS, new manual rack & pinion and one of the following rear suspension:



Triangulated 4-bar with R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $14,340



Narrowed rear frame rails, 2″ each side, Parallel 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,145



Rear rails narrowed up to 23″ wide , 4-Linkwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,470



Rear rails narrowed for C4 Corvette rear suspension, Rebound adjustable coil-overs, *narrowing of customers supplied C4 rear parts, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width.                $16,210

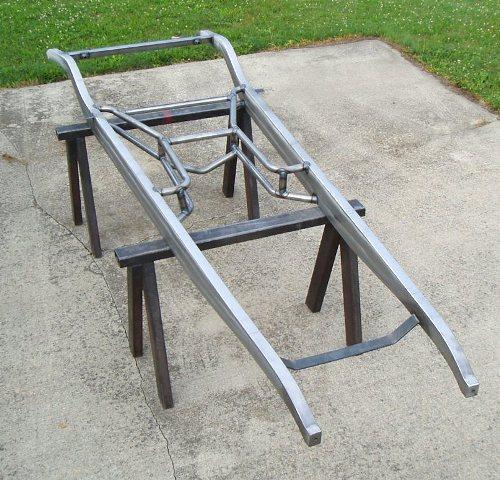

Example of Progressive Automotive bare 1931-32 Chevrolet car/1931-33 truck frame.
Bare 1931-32 Chevrolet car/1931-33 truck frame.
Example 2 of Progressive Automotive bare 1931-32 Chevrolet car/1931-33 truck frame.
Bare 1931-32 Chevrolet car/1931-33 truck frame.

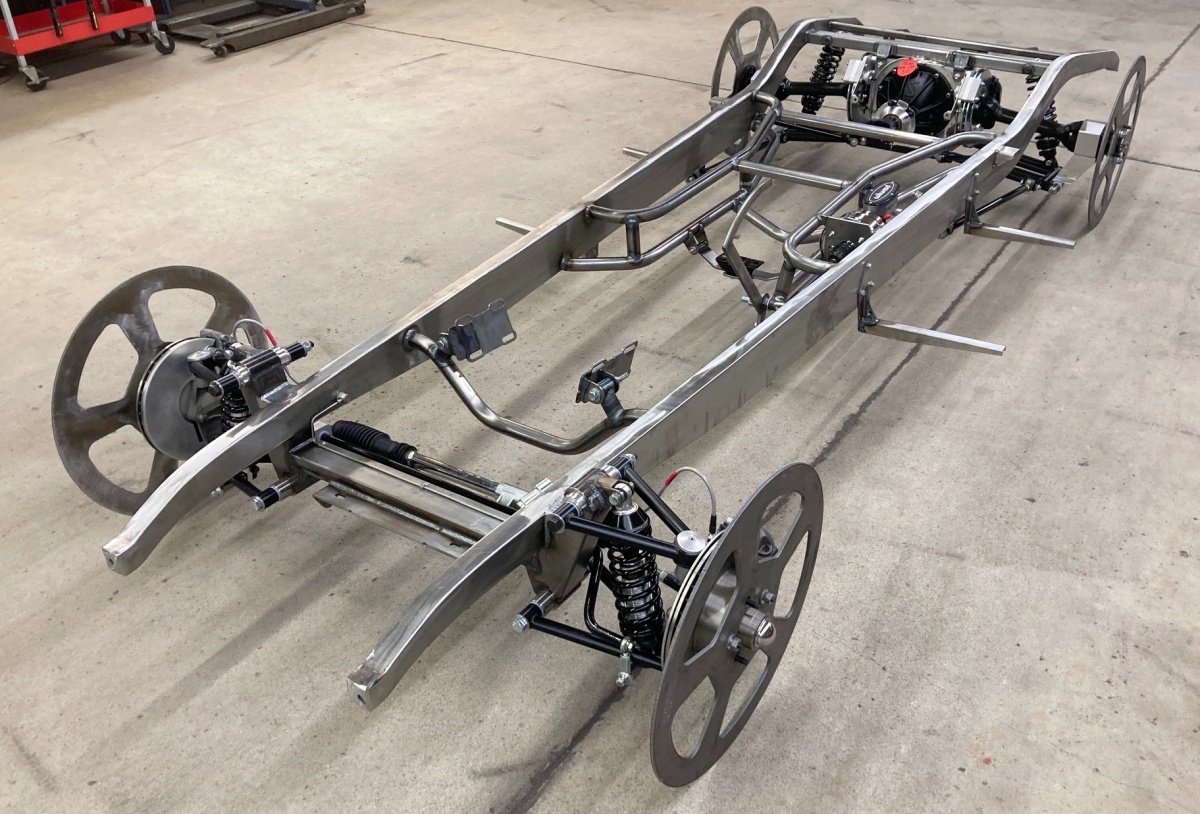

Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.
1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with optional Wilwood brakes, complete brake system, and RideTech HQ coil-overs.

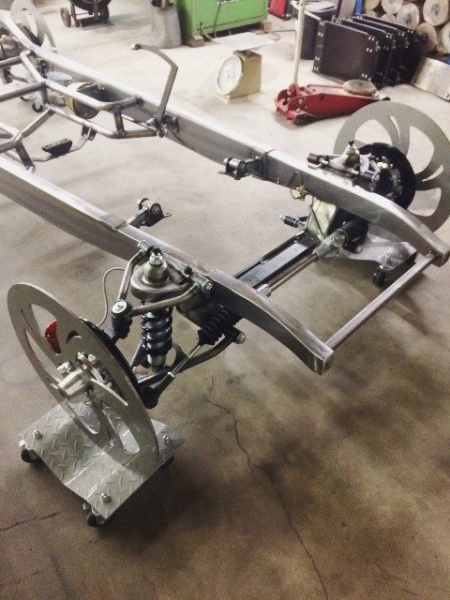

Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Kugel Komponents IFS
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Kugel Komponents IFS.

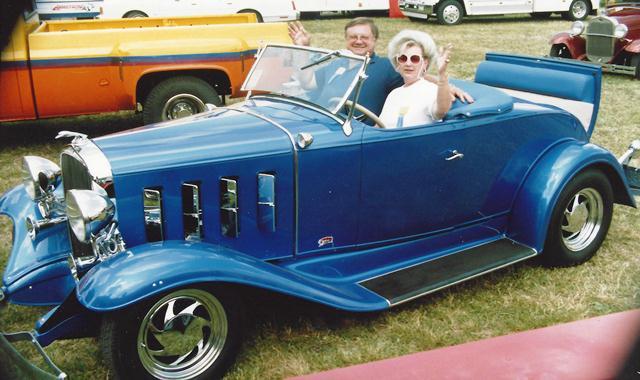

1932 Chevrolet roadster with Progressive Automotive chassis.
1932 Chevrolet roadster with Progressive Automotive chassis.
1932 Chevrolet roadster with Progressive Automotive chassis.
1932 Chevrolet roadster with Progressive Automotive chassis.

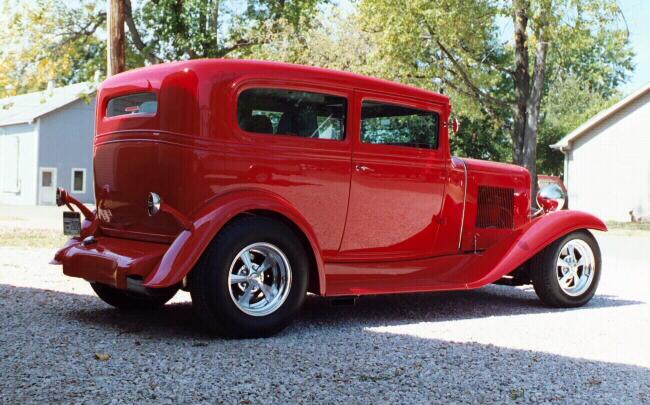

Chevrolet sedan with Progressive Automotive IFS.
Chevrolet sedan with Progressive Automotive IFS.
Chevrolet sedan with Progressive Automotive IFS.
Chevrolet sedan with Progressive Automotive IFS.

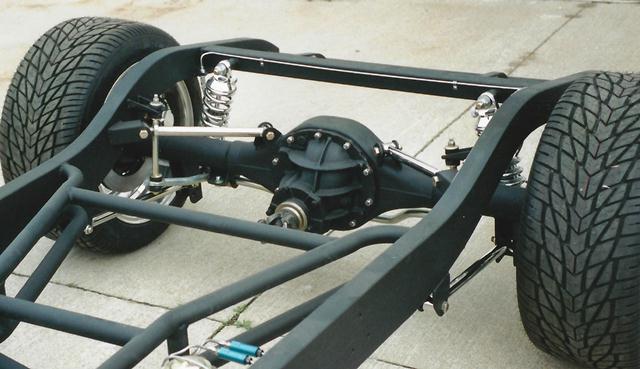

Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Triangulated 4-bar.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Triangulated 4-bar.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Kugel Komponents IFS.
Progressive Automotive 1931-32 Chevrolet car/1931-33 1/2 ton truck frame with Kugel Komponents IFS.
1932 Chevrolet roadster with Progressive Automotive chassis.
1932 Chevrolet roadster with Progressive Automotive chassis.
