1941-46 Chevrolet Truck Frames & Chassis

1941 Chevrolet truck featuring Progressive Automotive Air Ride chassis
1941 Chevrolet truck featuring Progressive Automotive Air Ride chassis



 These frames & rolling chassis are designed to fit 1941, 1942, 1943, 1944, 1945 & 1946 Chevrolet, ½ ton, trucks. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

 Unlike the original Chevrolet frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

 Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

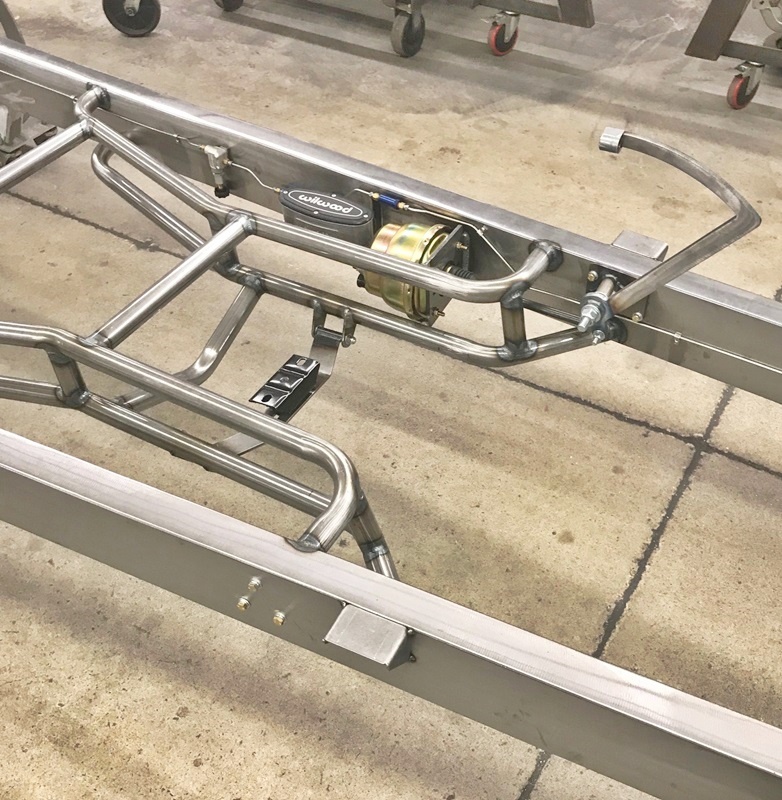

 Bare 1941-46 Chevrolet truck frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, front cab mounts spot welded in place, rear cab mounts supplied, rear coil-over crossmember and bumper mounting holes. Starting at $6,505



Example of rolling chassis, contact us for a quote.

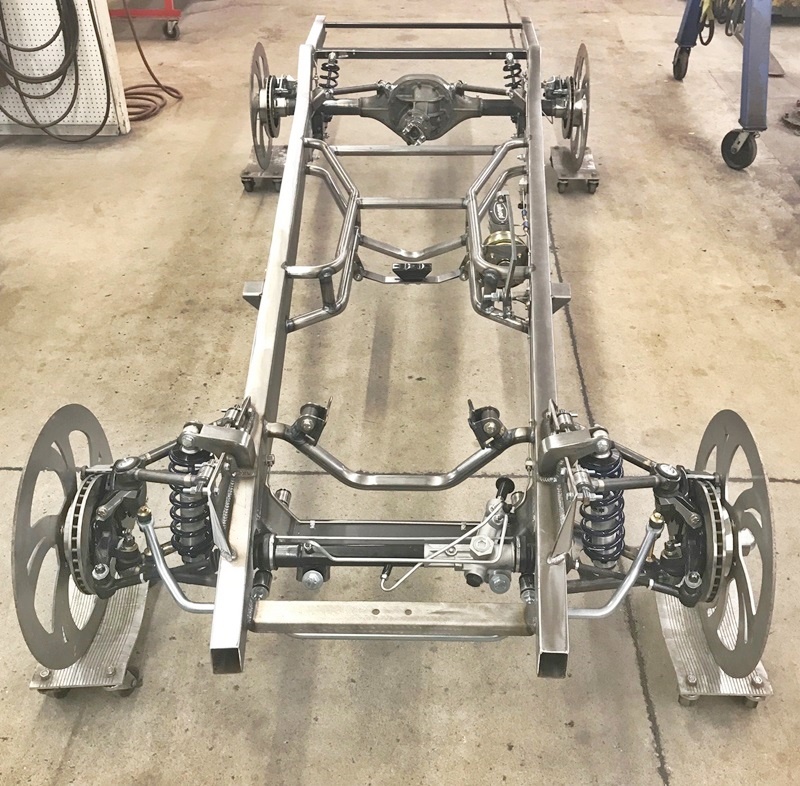

 1941-46 Chevrolet truck frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS with front sway bar, new manual rack & pinion (power rack upgrade available), Running board braces and one of the following rear suspension:

Triangulated 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $14,770



 Narrowed rear frame rails, 2″ each side, Parallel 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,585



 Rear rails narrowed up to 23″ wide, 4-Linkwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,890



 1941-46 Chevrolet truck frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, *1988-96 Corvette front suspension brackets, reman. power rack & pinion, 1” front sway bar, Rebound adjustable front & rear Ride Tech HQ coil-overs, narrowed rear frame rails, *1988-96 Corvette rear brackets for *narrowed hub width, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width, for customer supplied Corvette parts                 $16,895





Progressive Automotive 1941-46 Chevrolet truck chassis with Tubular IFS, 2” narrowed rear frame rails/Parallel 4-bar and Ride Tech HQ coil-overs
Progressive Automotive 1941-46 Chevrolet truck chassis with Tubular IFS, 2” narrowed rear frame rails/Parallel 4-bar and Ride Tech HQ coil-overs
Progressive Automotive 1941-46 Chevrolet truck chassis with 2” narrowed rear frame rails/Parallel 4-bar and Ride Tech HQ coil-overs
Progressive Automotive 1941-46 Chevrolet truck chassis with 2” narrowed rear frame rails/Parallel 4-bar and Ride Tech HQ coil-overs

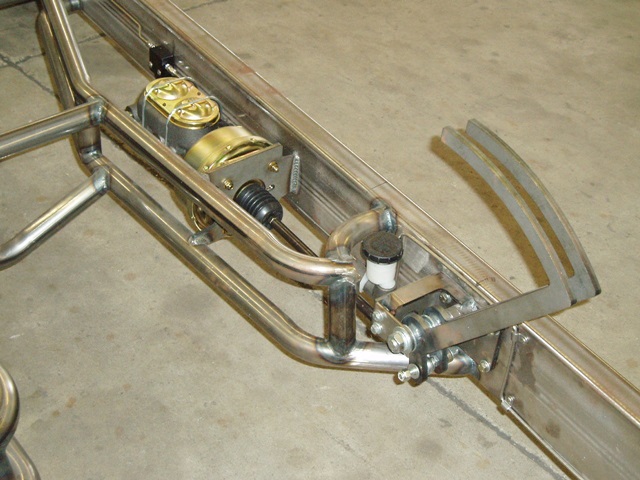

Progressive Automotive 1941-46 Chevrolet truck chassis with hydraulic clutch/brake pedals and optional parts
Progressive Automotive 1941-46 Chevrolet truck chassis with hydraulic clutch/brake pedals and optional parts

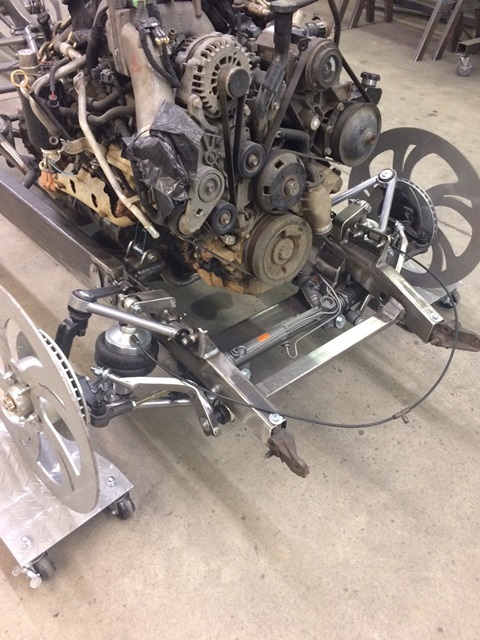

Custom built Progressive Automotive 1941-46 Chevrolet truck chassis with Tubular IFS, Ride Tech HQ ShockWaves and Wilwood brakes for Duramax/Allison drivetrain
Custom built Progressive Automotive 1941-46 Chevrolet truck chassis with Tubular IFS, Ride Tech HQ ShockWaves and Wilwood brakes for Duramax/Allison drivetrain
1941-46 Chevrolet truck featuring Progressive Automotive Air Ride chassis
1941-46 Chevrolet truck featuring Progressive Automotive Air Ride chassis

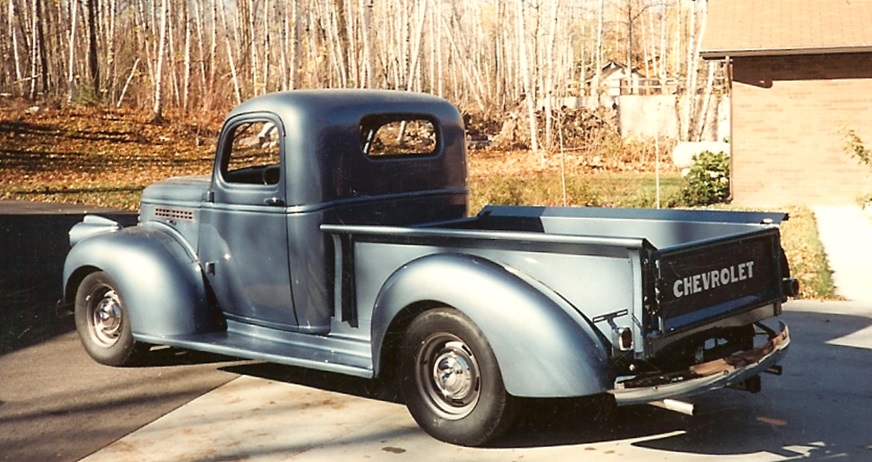

1941-46 Chevrolet truck featuring Progressive Automotive chassis
1941-46 Chevrolet truck featuring Progressive Automotive chassis

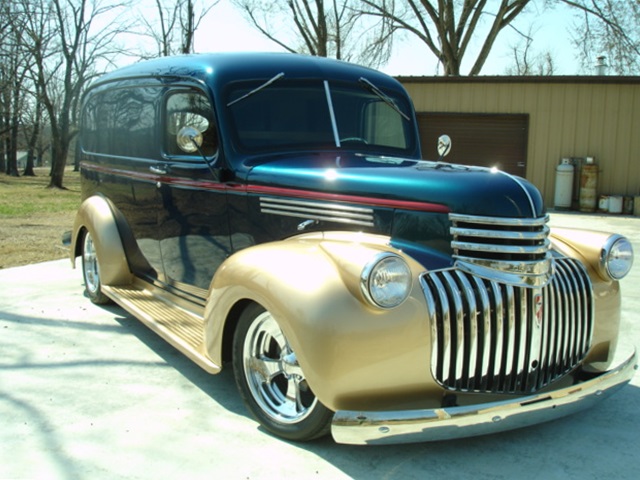

1941-46 Chevrolet panel truck featuring Progressive Automotive chassis
1941-46 Chevrolet panel truck featuring Progressive Automotive chassis
