1941-48 Chevrolet Car Frames & Chassis

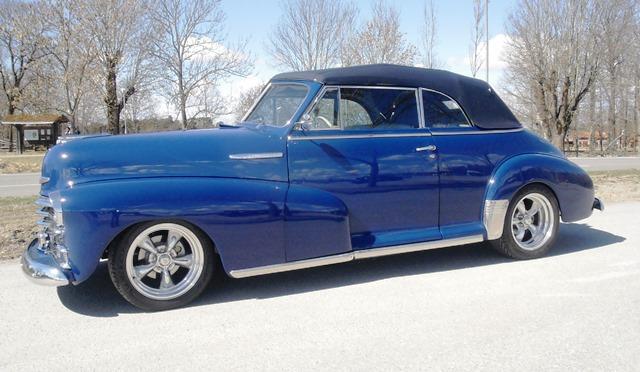

1947 Chevrolet convertible featuring Progressive Automotive chassis
1947 Chevrolet convertible featuring Progressive Automotive chassis



 These frames & rolling chassis are designed to fit 1941, 1942, 1943, 1944, 1945, 1946, 1947 and 1948 Chevrolet cars. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

 Unlike the original Chevrolet frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

 Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

 Bare 1941-48 Chevrolet frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, body mounts spot welded in place, rear coil-over crossmember and bumper mounting holes. Starting at $6,920



Example of rolling chassis, contact us for a quote.

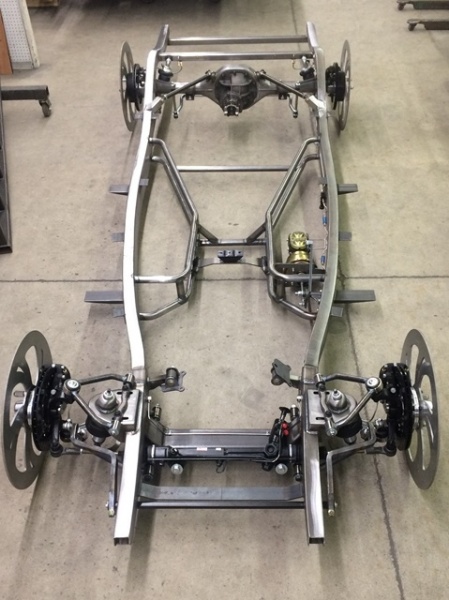

 1941-48 Chevrolet frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS with front sway bar, new manual rack & pinion (power rack upgrade available) and one of the following rear suspension:

 Triangulated 4-bar with R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $15,080



 Narrowed rear frame rails, 2″ each side, Parallel 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,880



 Rear rails narrowed up to 23″ wide, 4-Linkwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $17,205



 1941-48 Chevrolet frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, *1988-96 Corvette front suspension brackets, reman. power rack & pinion, 1” front sway bar, Rebound adjustable front & rear Ride Tech HQ coil-overs, narrowed rear frame rails, *1988-96 Corvette rear brackets for *narrowed hub width, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width, for customer supplied Corvette parts                 $17,205

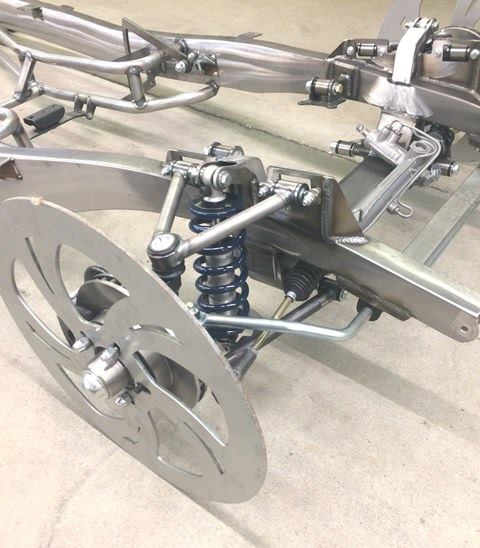

Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS, sway bar & Ride Tech HQ coil-overs
Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS, sway bar & Ride Tech HQ coil-overs
Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS
Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS

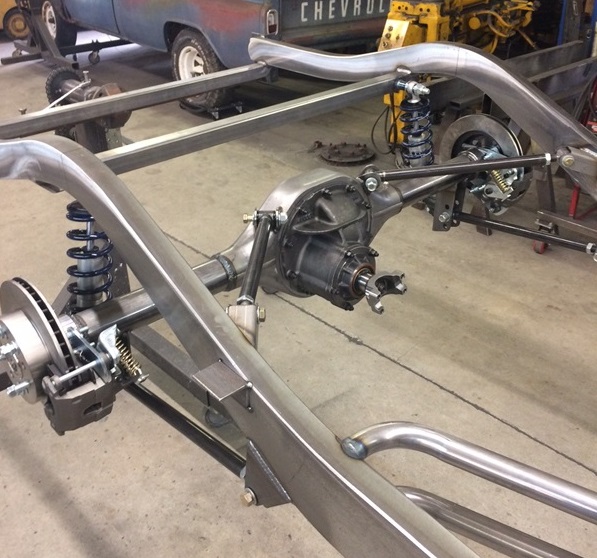

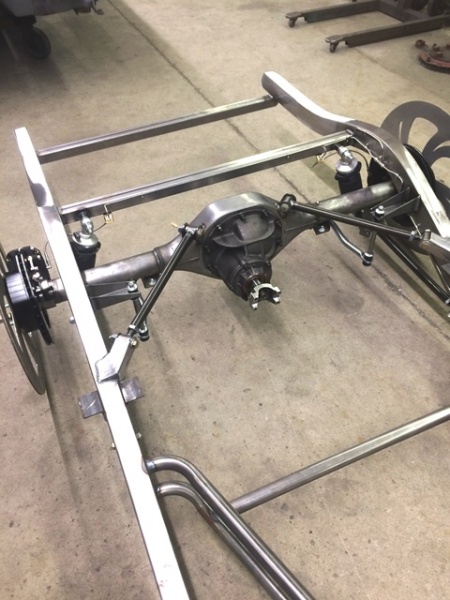

Progressive Automotive 1941-48 Chevrolet chassis with Triangulated 4-bar
Progressive Automotive 1941-48 Chevrolet chassis with Triangulated 4-bar

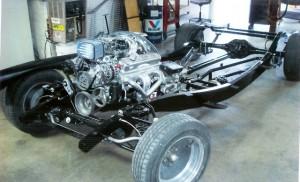

Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS, 1" sway bar, Ride Tech HQ ShockWaves and Wilwood brakes
Progressive Automotive 1941-48 Chevrolet chassis with Tubular IFS, 1″ sway bar, Ride Tech HQ ShockWaves and Wilwood brakes
Progressive Automotive 1941-48 Chevrolet chassis with Triangulated 4-bar, Ride Tech HQ ShockWaves and Wilwood brakes
Progressive Automotive 1941-48 Chevrolet chassis with Triangulated 4-bar, Ride Tech HQ ShockWaves and Wilwood brakes



Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts

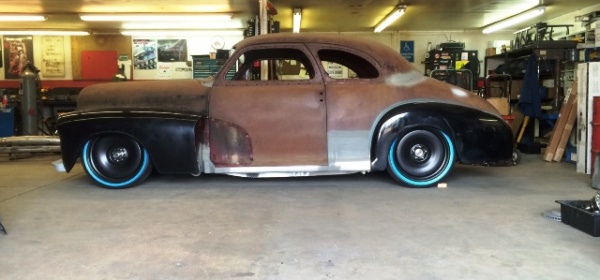

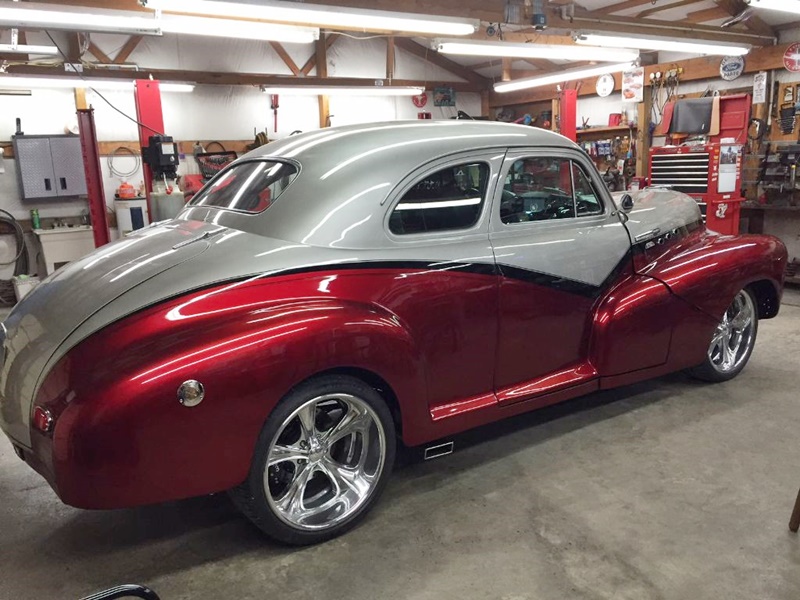

1947 Chevrolet coupe featuring Progressive Automotive chassis
1947 Chevrolet coupe featuring Progressive Automotive chassis

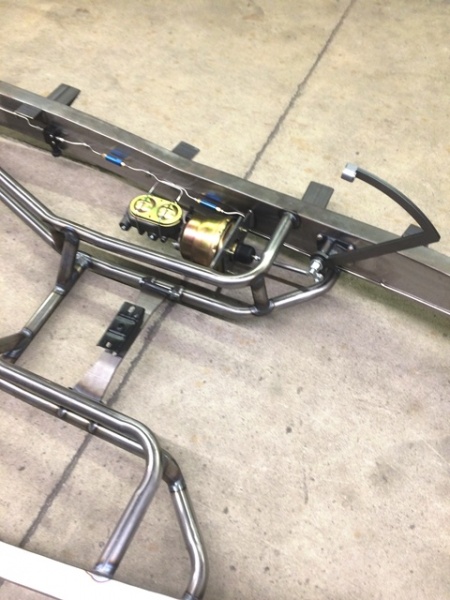

Progressive Automotive 1941-48 Chevrolet chassis with brake pedal & optional parts
Progressive Automotive 1941-48 Chevrolet chassis with brake pedal & optional parts

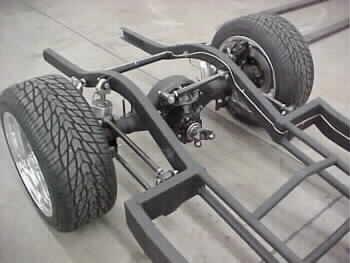

Progressive Automotive 1941-48 Chevrolet chassis with rear frame rails narrowed more than 2”/4-Link
Progressive Automotive 1941-48 Chevrolet chassis with rear frame rails narrowed more than 2”/4-Link
Progressive Automotive 1941-48 Chevrolet chassis with rear frame rails narrowed more than 2”/4-Link & optional parts
Progressive Automotive 1941-48 Chevrolet chassis with rear frame rails narrowed more than 2”/4-Link & optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts



Progressive Automotive 1941-48 Chevrolet chassis with optional parts
Progressive Automotive 1941-48 Chevrolet chassis with optional parts

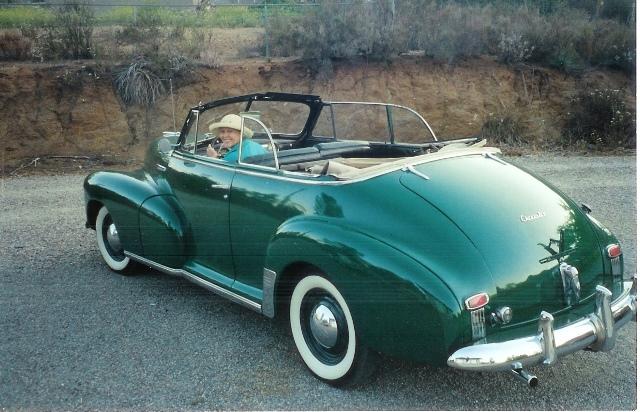

1947 Chevrolet convertible featuring Progressive Automotive chassis
1947 Chevrolet convertible featuring Progressive Automotive chassis
