9″ Ford Rear End & 1984-96 C4 Corvette IRS Rear Ends

New 9″ Ford Rear Housing with New Axles

 New 9″ Ford rear end housing, custom built to your specified hub width. Heavy duty style tapered style center, 1/4″ wall axle tubes (like factory Ford), new 28 or 31 spline axles, new big bearings installed, new stock length studs, and stainless steel breather vent. UPS Shipping included for the Continental United States.                PA-N9                  $1,430.00

    Specify the following:

          -Centered housing or Centered pinion

          -Old Ford (Big Ford) or New Ford (Torino) Flange

          -Hub width (wheel mounting surface to wheel mounting surface

          -Brake hub thickness of rear brakes being used, if not supplied with rear end

          -5 x 4.5” Ford/Chrysler or 5 x 4.75” Chevrolet/G.M. bolt pattern

                    -If 5 x 4.75” Chevrolet/G.M. bolt pattern, 7/16” x 20 or 10MM x 1.5MM

Progressive Automotive new 9" Ford housing with matched axles
Progressive Automotive new 9″ Ford housing with matched axles
Progressive Automotive new 9" Ford housing, matched axles, new Tru-Trac 3rd member and Wilwood brakes
Progressive Automotive new 9″ Ford housing, matched axles, new Tru-Trac 3rd member and Wilwood brakes



 9″ Ford Rear 3rd Members:
New 3rd member (stock style case), nodular support, 31 spline, all new internals, True Trac Posi traction , Motive Gear  gears, 1350 yoke and drive shaft  u-bolts.  Available in 3:50, 3:70, 3:89 &  4:11 gear ratios.  For 3:00 or 3:25 ratio, add $35.00. UPS Shipping included for the Continental United States.              PA-NN-P              $1,660.00

New factory style case, Tru-Trac posi, Motive gears, 1350 billet yoke and u-bolts for u-joint
New factory style case, Tru-Trac posi, Motive gears, 1350 billet yoke and u-bolts for u-joint
New factory style case, Tru-Trac posi, Motive gears, 1350 billet yoke and u-bolts for u-joint
New factory style case, Tru-Trac posi, Motive gears, 1350 billet yoke and u-bolts for u-joint















 Rear Brakes for 9″ Ford Rear Ends

    Specify the following: Ford/Chrysler 5 x 4.5″ or G.M. 5 x 4.75″ bolt pattern, Old Ford (Big Ford) or New Ford (Torino) flange

Specify 9″ Ford Flange Dimesnions:

New Ford/Torino Flange Dimensions
New Ford/Torino Flange Dimensions
Big/Old Ford Flange dimensions
Big/Old Ford Flange dimensions



















The Right Stuff Single-piston, cast iron caliper with built-in parking brake, 10.5″ rotors, mounting brackets, hardware and pads. Minimum Wheel Size 14″. Lokar parking brake kit available at additional cost.          PA-TRS              $395.00 plus shipping

PA-TRS kit shown
PA-TRS kit shown





Wilwood 4-piston Dynalite calipers with parking brake, 12.19″ slotted/cross drilled rotors. Clears most 15″ aluminum wheels. Lokar parking brake kit available at additional cost.

Black Anodized Calipers           140-7139-D              $752.00 plus shipping

Red Powdercoated Calipers     140-7139-DR            $845.00 plus shipping

Polished Calipers                      140-7139-DP            $856.00 plus shipping

Wilwood 140-7139-D shown
Wilwood 140-7139-D shown
Wilwood 140-7139 fitment diagram shown
Wilwood 140-7139 fitment diagram shown



















Wilwood 4-piston FNSL4R calipers with parking brake, 12.88″ slotted/cross drilled rotors. Clears most 17″ aluminum wheels. Lokar parking brake kit available at additional cost.

Black Powdercoated Calipers   140-9217-D              $1595.00 plus shipping

Red Powdercoated Calipers     140-9217-DR            $1595.00 plus shipping

Polished Calipers                      140-9217-DP            $1780.00 plus shipping

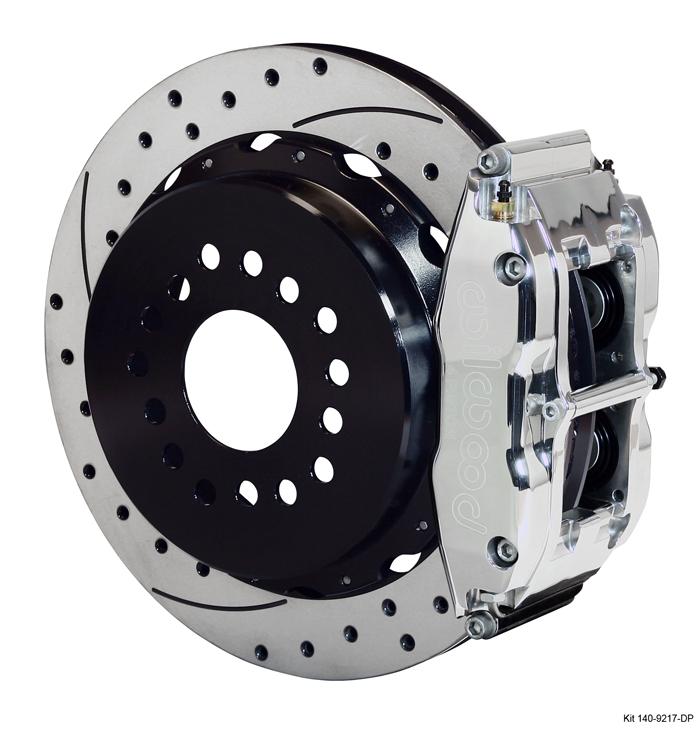

Wilwood 140-9217-DP shown
Wilwood 140-9217-DP shown
Wilwood 140-9217 fitment diagram shown
Wilwood 140-9217 fitment diagram shown





















Wilwood 4-piston Aero calipers with parking brake, 14″ slotted/cross drilled rotors. Clears most 18″ aluminum wheels. Lokar parking brake kit available at additional cost.

Black Powdercoated Calipers   140-10947-D              $1845.00 plus shipping

Red Powdercoated Calipers     140-10947-DR            $1845.00 plus shipping

Wilwood 140-10947-DR shown
Wilwood 140-10947-DR shown

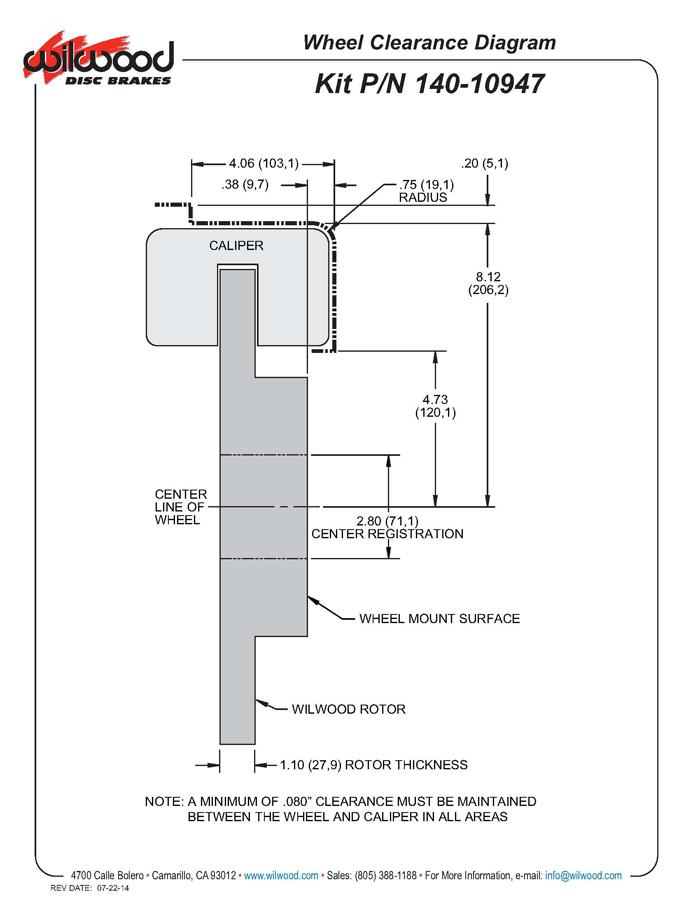

Wilwood 140-10947 fitment diagram shown
Wilwood 140-10947 fitment diagram shown





















1984-96 C4 Corvette Rear Ends

 All 1984-96 C4 Corvette IRS rear ends are purchased from Corvette specialty salvage yards and are guaranteed straight. Wearable parts, such as u-joints, tie rod ends, bushings, hub carriers, calipers or rotors are not refurbished. We can refurbish these parts for you, at an additional cost.

Tech Info:
Both generations came in either a Dana 36 or Dana 44.
1984-96 Automatic transmission Corvettes have Dana 36 rear ends. Factory G.M. gear ratios range from 2:79 to 3:07.
1984-96 Manual transmission Corvettes had Dana 44’s. Factory G.M. gear ratios range from 2:79 to 3:43. These are harder to find, and more ring and pinion ratios are available, aftermarket.


Our *Corvette rear ends include Gear section, rear cover, toe-in adjuster, half shafts, hub carriers, carrier housings, trailing bars (dog bones), camber bars, rotors & calipers. *Please note, these are non-refurbished, used Parts.


Typical C4 rear end



1984-87 C4 Tech Data:
          Clears most 15” Aluminum wheels
          Parking brakes inside of the rotor
          62.5” Hub width at the pinnacle of it arc
          Highest numerical stock gear available:
                 Dana 36, 3:07
                 Dana 44, 3:43


          1984-87, Dana 36 rear end            PA-VR-84-36       Inquire for cost

          1984-87, Dana 44 rear end            PA-VR-84-44       Inquire for cost



1988-96 C4 Tech Data:
          Clears most 16” Aluminum wheels
          Parking brakes built into the caliper
          63.5” Hub width at the pinnacle of it arc
          Highest common numerical stock gear available:
                 Dana 36, 3:07
                 Dana 44, 3:43

          1988-96, Dana 36 rear end            PA-VR-96-36       Inquire for cost

          1988-96, Dana 44 rear end            PA-VR-96-44       Inquire for cost



1984-87 C4 Corvette Rear Brakes

Wilwood 4-piston FNSL4R calipers with parking brake, 12.88″ slotted/cross drilled rotors. Clears most 17″ aluminum wheels. Lokar parking brake kit available at additional cost.

Black Powdercoated Calipers   140-11920-D              $1595.00 plus shipping

Red Powdercoated Calipers     140-11920-DR            $1595.00 plus shipping

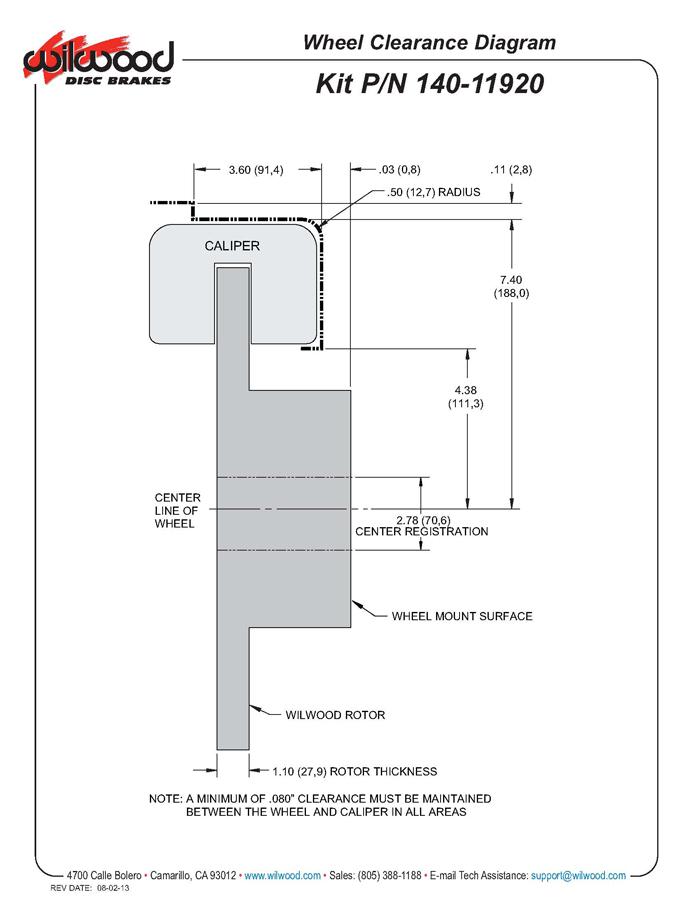

Wilwood 140-11920 fitment diagram shown
Wilwood 140-11920 fitment diagram shown
Wilwood 140-11920-DR shown
Wilwood 140-11920-DR shown





1988-96 Rear Brakes

Wilwood 12″ slotted/cross drilled rotors, pr.     140-8314-D           $549.00 plus shipping
Lokar parking brake kit available at additional cost.

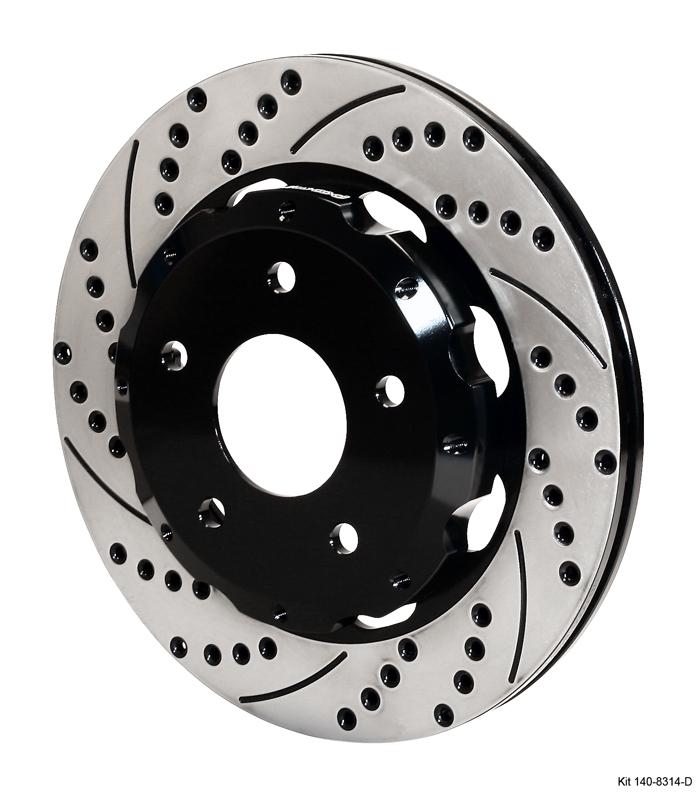

Wilwood 140-8314 shown
Wilwood 140-8314 shown
Wilwood 140-8314 shown
Wilwood 140-8314 shown
