Pro Street 4-bar & Panhard bar Rear Suspension

Progressive Automotive Pro Street 4-link and Panhard bar kit shown
Progressive Automotive Pro Street 4-link and Panhard bar kit shown

 Our Pro-Street 4-link rear suspension and Panhard bar kits are made from heavy wall, seamless tubing and include urethane bushings. Bars are TIG welded for strength and appearance. Mounting brackets have multiple mounting points to fine tune for the strip. Ride heights can be custom tailored to you taste during installation. All bars have an adjustable end for allows easy adjustment of the pinion angle. Frame rails must be boxed for bracket attachment points. Economic urethane bushings are standard with Ride Tech R-Joint as an upgrade. UPS Shipping and packaging is additional. Proudly manufactured at our shop in Baltimore Ohio.



Additional Parts & Upgrades, such as sway bars, are listed at the bottom of this page

Pro-Street 4-link Rear Suspension Kit
Pro-Street 4-bar kits include: (4) Bars with urethane bushings, (2) *Cut-off crossmember bar mounts with hardware, (2) Rear axle mounts with hardware, (4) Lower bar frame mounts with hardware, (2) Lower coil-over/ShockWave mounts with hardware. *Front bar mounts are designed to weld to your cut-off crossmember

4-Link Kit      PA-LINK    $475

Progressive Automotive Pro-Street PA-LINK, PA-PHB kit shown with additional parts
Progressive Automotive Pro-Street PA-LINK, PA-PHB kit shown with additional parts

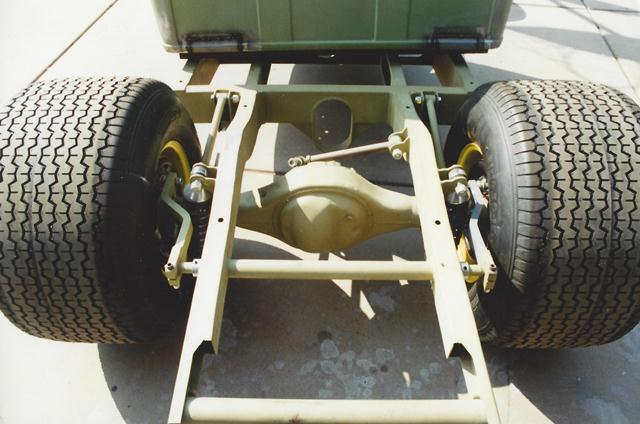

Progressive Automotive Pro-Street kit with additional parts installed in a 1932 Ford truck
Progressive Automotive Pro-Street kit with additional parts installed in a 1932 Ford truck

















*Panhard Bar Kit for All Steel Housings (8″ Ford, 9″ Ford, 8 3/4″ Chrysler, etc.)
Universal Panhard bar kits include: (1) *Panhard Bar with rod ends, 27 1/2″ eye centers,(2) Frame mounts & (1) Rear axle mounts.      PA-PHB         $120
*Panhard bar may require cutting & re-tapping.

Progressive Automotive PA-PHB kit shown
Progressive Automotive PA-PHB kit shown



*Panhard Bar Kit for Dana Style Cast Housings (8.8 Ford, 10-bolt GM, 12-bolt G.M, etc.)
Universal DANA Panhard bar kits include:
(1) *Panhard Bar with rod ends, 47 1/2″ eye centers, (2) Multi-hole frame mount & (1) Rear axle tube mount               PA-PHB-DANA       $235
*Panhard bar may require cutting & re-tapping. Mounts 7″ behind axle tube for coil-over clearance.

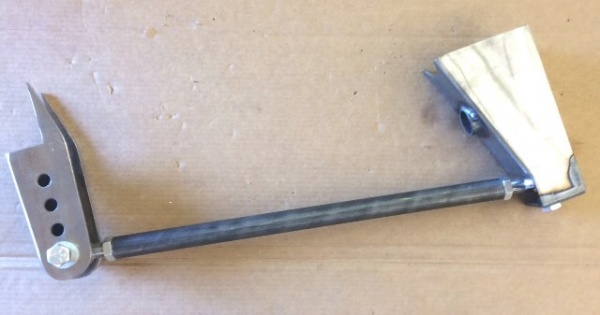

Progressive Automotive PA-PHB-DANA kit shown with shortened bar
Progressive Automotive PA-PHB-DANA kit shown with shortened bar

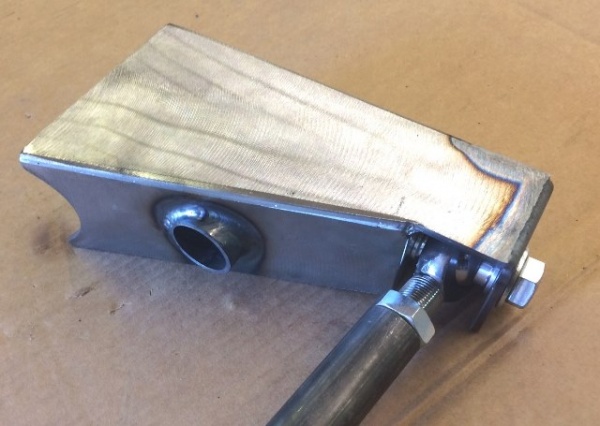

Progressive Automotive PA-PHB-DANA kit axle mount
Progressive Automotive PA-PHB-DANA kit axle mount
Progressive Automotive PA-PHB-DANA kit frame mount
Progressive Automotive PA-PHB-DANA kit frame mount















Progressive Automotive PA-PHB-DANA kit shown installed on extremley narrowed rear rails (21" wide)
Progressive Automotive PA-PHB-DANA kit shown installed on extremley narrowed rear rails (21″ wide)



Additional Parts & Upgrades

Upgrade 4-link to R-joints from urethane bushings    UG-TRB-RJ    add $230

Upgrade Panhard 4-bar to R-joints with (1) weld-on and (1) adjustable end    UG-PHB-RJ    add $70

Why R-Joints? Detailed information here

3/4", 16 R-Joint
3/4″, 16 R-Joint
Weld-on R-Joint
Weld-on R-Joint



















.75″ Torsional Rear Sway bar kit with weld-on crossmember brakcets, Specify Bar length                         PA-RSB-P4B         $405

1″ Torsional Rear Sway bar kit, thru frame style, Specify Bar length and straight or 30 degree kicked arms            PA-RSB-PRO                     $480

.75" Torsional Rear Sway bar kit with weld-on crossmember brackets
.75″ Torsional Rear Sway bar kit with weld-on crossmember brackets
1" Torsional Rear Sway bar kit
1″ Torsional Rear Sway bar kit























Upper Coil-over/Shockwave mounts, when suspension mounts on the outside of the frame                      TRB-CO-CJCV     $55



Ride Tech Coil-Overs

*More information on these can be found on our Ride Tech Coil-over & Shockwave page

HQ coil-overs, rebound adjustable                        TRB-CO-HQ            $720

TQ coil-overs, rebound adjustable, dual stage compression           TRB -CO-TQ   $2,120



Ride Tech HQ Coil-overs shown
Ride Tech HQ Coil-overs shown



Ride Tech Shockwaves for Air suspension

*More information on these can be found on our Ride Tech Coil-over & Shockwave page

HQ ShockWaves, rebound adjustable                        TRB-SKW-HQ            $925

TQ ShockWaves, rebound adjustable, dual stage compression           TRB -SKW-TQ   $1,950

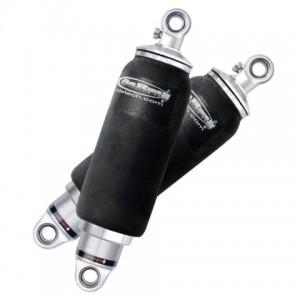

Ride Tech HQ Rear Shockwaves shown
Ride Tech HQ Rear Shockwaves shown
