1984-96 C4 Corvette Based IFS Front Suspension Kits

  Our weld-in C4 Corvette IFS front suspension kits will allow you to bolt your supplied C4 parts, use the specified rack & pinion and either Ride Tech Coil overs or Tech Shockwaves for air ride in place. Each weld-in kit is specifically designed per Make & Model for the easiest installation for the do it yourself builder. The narrower hub width (wmd) allows more choices for wheels and especially helpful on narrow or lowered vehicles. All kits are designed for use with the off-the-shelf, 1989-97 Ford power rack & pinion. If you like flat- faced, front wheel drive style wheels, we can custom build your front suspension wider.

 We also custom build for non-stock frames or most vehicles not listed. See the bottom of the page for some examples. Tech Sheets can be found in our Tech Info section at the top or left side of the screen. Vehicles must have trim-able inner fender panels for upper control arm clearance.

 Proudly manufactured at our shop in Baltimore Ohio.

Additional Parts listed at the bottom of this page

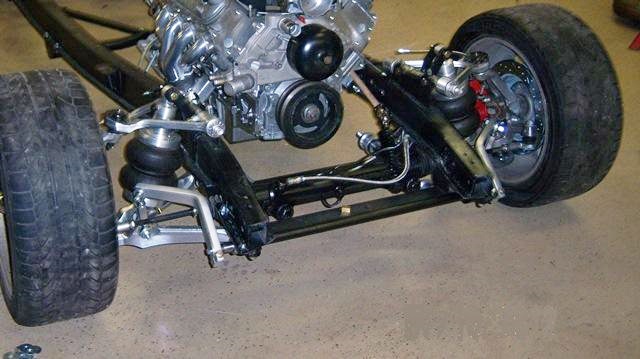

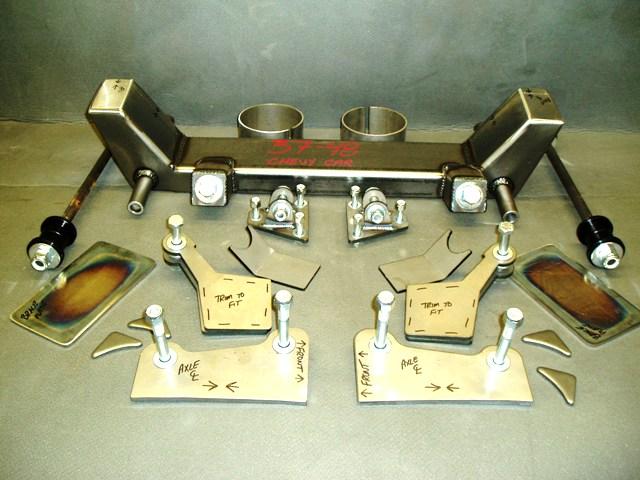

1937-39 Chevy car

Fits 1937, 1938 and 1939 Chevy car

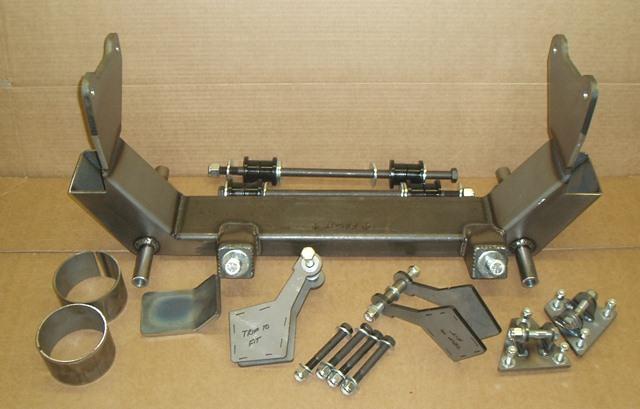

1984-87 Corvette front suspension weld-in bracket kit                    VF-37C-84           $745

1988-96 Corvette front suspension weld-in bracket kit                    VF-37C-96           $745

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) Brace Plates

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is even with the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is .5” above the bottom of the frame.

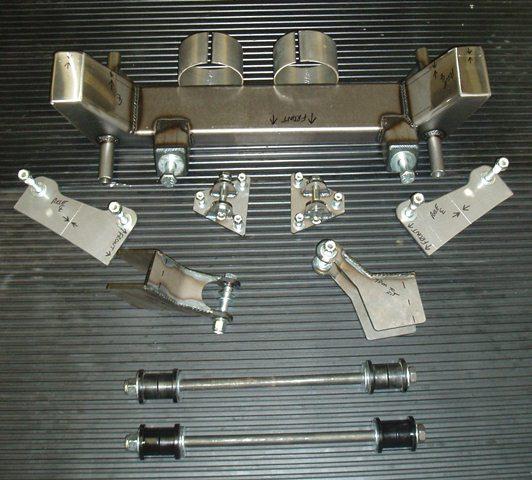

1940-48 Chevy car

Fits 1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947 and 1948 Chevy car

1984-87 Corvette front suspension weld-in bracket kit                      VF-40C-84           $745

1988-96 Corvette front suspension weld-in bracket kit                      VF-40C-96           $745

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) Brace Plates

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is even with the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is .5” above the bottom of the frame.



1949-54 Chevy car

Fits 1949, 1950, 1951, 1952, 1953 and 1954 Chevy car

1984-87 Corvette front suspension weld-in bracket kit                      VF-49C-84           $745

1988-96 Corvette front suspension weld-in bracket kit                      VF-49C-96           $745

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) Brace Plates

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

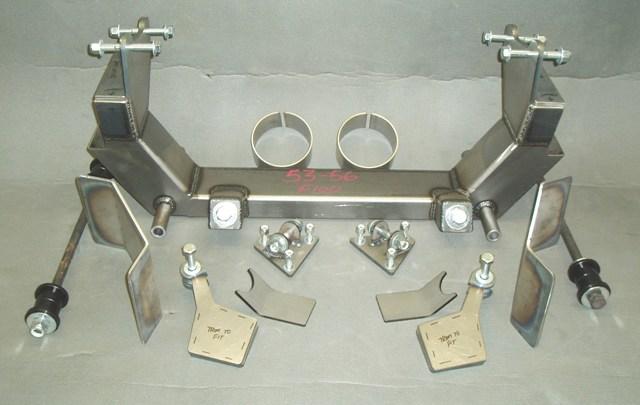

1953-62 Corvette

Fits 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961 and 1962 Corvettes

1984-87 Corvette front suspension weld-in bracket kit                      VF-62C-84           $715

1988-96 Corvette front suspension weld-in bracket kit                      VF-62C-96           $715

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is even with the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                       59.5” Hub width

                      Ride Height Data: Center of wheel is .5” above the bottom of the frame.

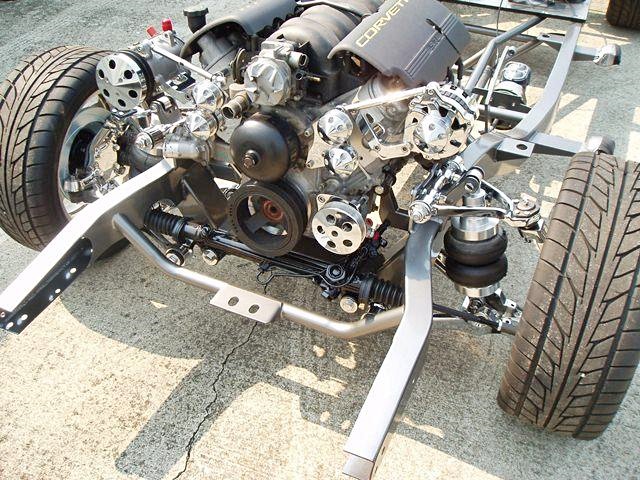

1955-57 Chevy car

Fits 1955, 1956 and 1957 Chevy car

1984-87 Corvette front suspension weld-in bracket kit                   VF-55C-84           $2,725

1988-96 Corvette front suspension weld-in bracket kit                   VF-55C-96           $2,725

          (1) New front frame section, boxed, with lap plates & core support crossmember

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.



1937-40 Chevy truck

Fits 1937, 1938, 1939 and 1940 Chevy trucks

1984-87 Corvette front suspension weld-in bracket kit                     VF-37T-84           $735

1988-96 Corvette front suspension weld-in bracket kit                     VF-37T-96           $735

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

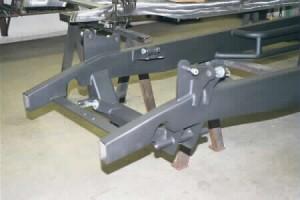

1941-46 Chevy truck

Fits 1941, 1942, 1943, 1944, 1945 and 1946 Chevy trucks

1984-87 Corvette front suspension weld-in bracket kit                      VF-41T-84           $735

1988-96 Corvette front suspension weld-in bracket kit                      VF-41T-96           $735

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

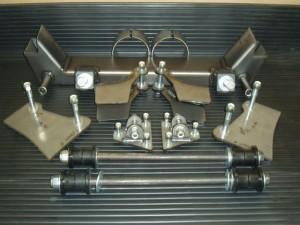

1947-55 (1^st Ser.) Chevy & G.M.C. truck

Fits 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954 and 1955 (1st Ser.) Chevy and GMC trucks

1984-87 Corvette front suspension weld-in bracket kit                      VF-47T-84           $735

1988-96 Corvette front suspension weld-in bracket kit                      VF-47T-96           $735

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (2) Upper control arm mounts

          (1) Lower crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

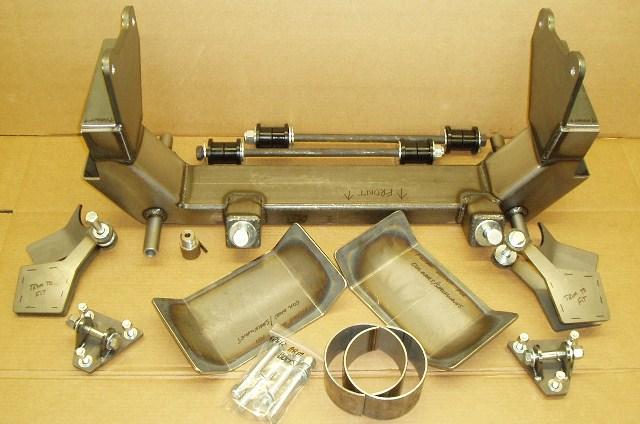

1955 (2nd Ser.)-59 Chevy & G.M.C. truck

Fits 1955 (1st Ser,), 1956, 1957, 1958 and 1959 Chevy and GMC trucks

1984-87 Corvette front suspension weld-in bracket kit with extender   VF-55T-84     $900

1988-96 Corvette front suspension weld-in bracket kit                         VF-55T-96     $875

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          (2) Spring Reliefs

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      60” Hub width, kit includes extender

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2.5” above the bottom of the frame.

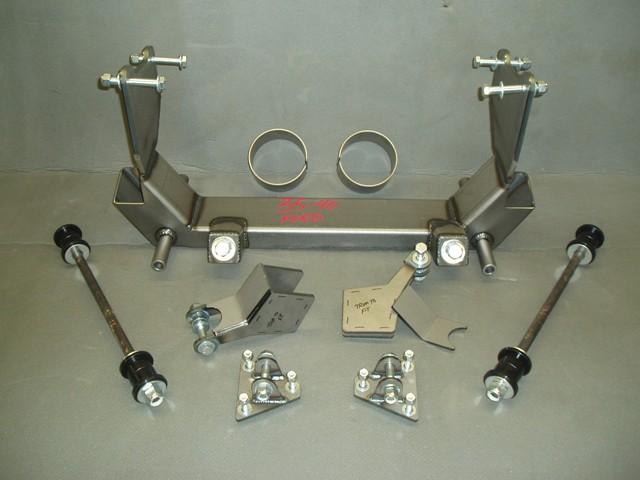

1935-40 Ford car / 1935-41 Ford truck

Fits 1935, 1936, 1937, 1938, 1939 and 1940 Ford cars

Fits 1935, 1936, 1937, 1938, 1939, 1940 and 1941 Ford trucks

1984-87 Corvette front suspension weld-in bracket kit                      VF-35F-84            $850

1988-96 Corvette front suspension weld-in bracket kit                      VF-35F-96            $850

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.



1941-48 Ford car

Fits, 1941, 1942, 1943, 1944, 1945, 1946, 1947 and 1948 Ford cars

1984-87 Corvette front suspension weld-in bracket kit                      VF-41F-84            $850

1988-96 Corvette front suspension weld-in bracket kit                      VF-41F-96            $850

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                        Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

1942-47 Ford Truck

Fits 1942, 1943, 1944, 1945, 1946 and 1947 Ford trucks

1984-87 Corvette front suspension weld-in bracket kit with extender   VF-42T-84     $900

1988-96 Corvette front suspension weld-in bracket kit                         VF-42T-96     $875

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          (2) Spring Reliefs

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      60” Hub width, kit includes extender

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2.5” above the bottom of the frame.



1948-52 Ford Truck

Fits 1948, 1949, 1950, 1951 and 1952 Ford trucks

1984-87 Corvette front suspension weld-in bracket kit with extender   VF-48T-84     $900

1988-96 Corvette front suspension weld-in bracket kit                          VF-48T-96     $875

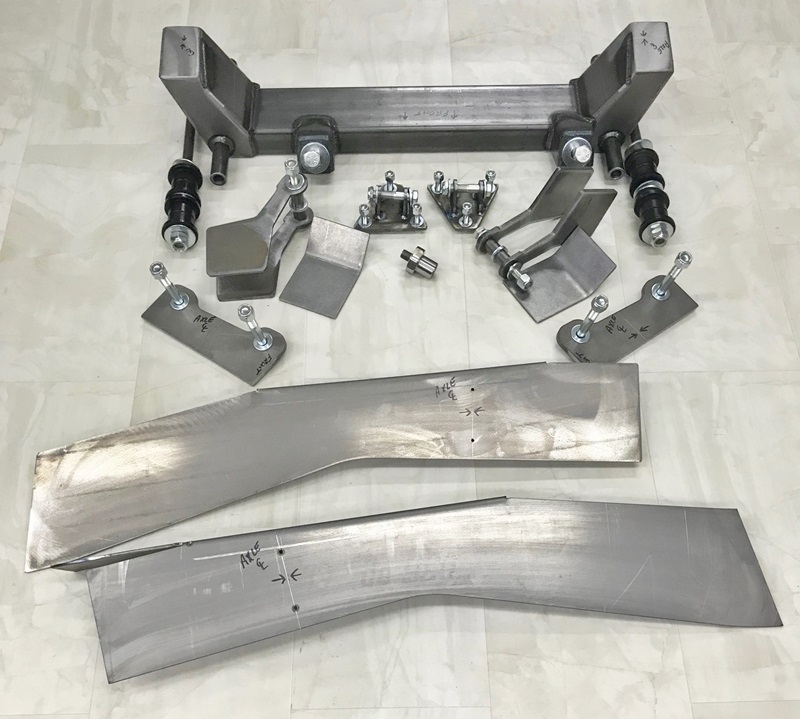

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          (2) Spring Reliefs

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      60” Hub width, kit includes extender

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2.5” above the bottom of the frame.



1953-59 Ford Truck

Fits, 1953, 1954, 1955, 1956, 1957, 1958 and 1959 Ford trucks

1984-87 Corvette front suspension weld-in bracket kit with extender   VF-53T-84     $900

1988-96 Corvette front suspension weld-in bracket kit                         VF-53T-96     $875

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          (2) Spring Reliefs

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      60” Hub width, kit includes extender

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      13” brake system, clears most 17” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2.5” above the bottom of the frame.



1937-41 Willys car & truck

Fits 1937, 1938, 1939, 1940 and 1941 Willys cars and trucks

1984-87 Corvette front suspension weld-in bracket kit                      VF-37W-84          $850

1988-96 Corvette front suspension weld-in bracket kit                      VF-37W-96          $850

     Both 1984-87 and 1988-96 Corvette front suspension kits include:

          (1) One Piece crossmember

          (2) Lower coil-over/Shockwave mounts with mounting hardware

          (4) Upper coil-over/Shockwave mounts with mounting hardware

          (4) Lower control arm bushings with mounting hardware

          (2) C-notches

          Our 1984-87 C4 Kit Tech Data:

                      11” brake system, clears most 15” Aluminum wheels

                      58.5” Hub width

                      Ride Height Data: Center of wheel is 1.5” above the bottom of the frame.

          Our 1988-96 C4 Kit Tech Data:

                      12” brake system, clears most 16” Aluminum wheels

                      59.5” Hub width

                      Ride Height Data: Center of wheel is 2” above the bottom of the frame.

Additional Parts for C4 Corvette Front Kits

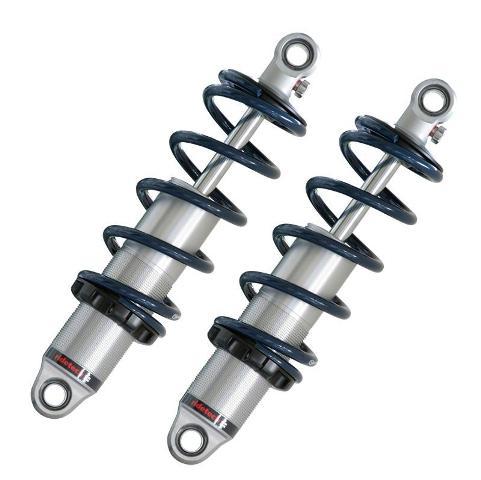

Ride Tech Coil-overs with springs and spanner wrench, pr.

*More information on these can be found on our Ride Tech Coil-over & Shockwave page

               RQ coil-overs                                                   VF-CO-RQ            $565

               HQ coil-overs                                                   VF-CO-HQ            $665

               TQ Coil-overs                                                   VF-CO-TQ            $1,315





Ride Tech Shockwaves, pr.

*More information on these can be found on our Ride Tech Coil-over & Shockwave page

               RQ Shockwaves                                               VF -SKW-RQ        $700

               HQ Shockwaves                                               VF -SKW -HQ       $900

               TQ Shockwaves                                               VF -SKW -TQ       $1,400





Rack & Pinions

               Power Rack & Pinion                                               PA-VF-POW         $223

               Custom Manual Rack & Pinions                                PA-VF-MAN         $389

               Chrome Power Rack & Pinions                                 PA-VF-POW-C     $489

               Rack & Pinion Bushings,pr.                                      RP-BUS                $25

               Manual Right Hand Drive                                          PA-VF-RHDM      Starting at $1,125

               Power Right Hand Drive                                           PA-VF-RHDP       Starting at $1,125



Rebuild Corvette suspension, with:                                           VF-UG-RBK          $485

               (4) Urethane upper arms bushings

               (2) Upper ball joints

               (2) Lower ball joints

               (2) Outer tie rod ends



 Front hub carriers, installed, pr.                                              VFU-UG-RHA      $339

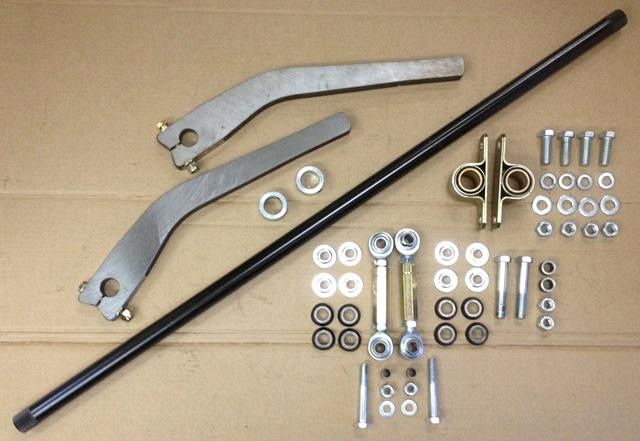

Torsional front sway bar kit for 1984-87 Corvette parts               PA-FSB-V4           $550

Torsional front sway bar kit for 1988-96 Corvette parts               PA-FSB-V6           $550
