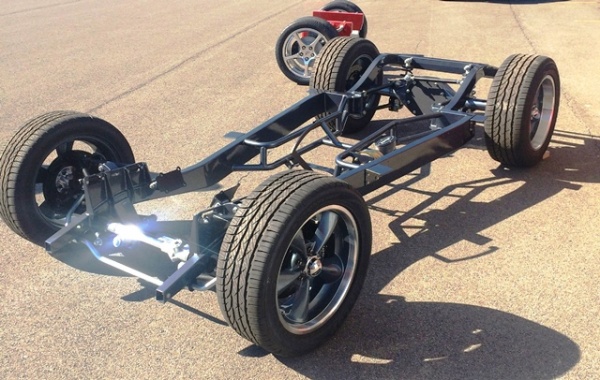

These frames & rolling chassis are designed to fit 1937, 1938, 1939, 1940 and 1941 Willys cars and short bed Willys trucks. Call for information and pricing for your specific frame or chassis needs. Proudly manufactured at our shop in Baltimore Ohio.
Our hot rod frames feature our new boxed frame rails, constructed from 10 gauge (true 1/8″) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded and the corner welds smoothed.
Unlike the original Ford frame, our street rod frames incorporate our tubular crossmember. Not only does this create a stronger frame, but it allows room for all of the popular transmissions.
Other options are available, such as Custom ride heights, Air ride, brake upgrades, new 3rd members and Kugel Suspension.
Also fits Outlaw Performance fiberglass bodies. Will not work with Bodies designed for S-10 chassis swaps, since those are, well, built for S10’s.
Examples of Chassis, call for a quote.
1937-41 Willys Car & truck frame with Tubular X-member, Chevy motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS, remain. power or new manual rack & pinion and one of the following rear suspension:

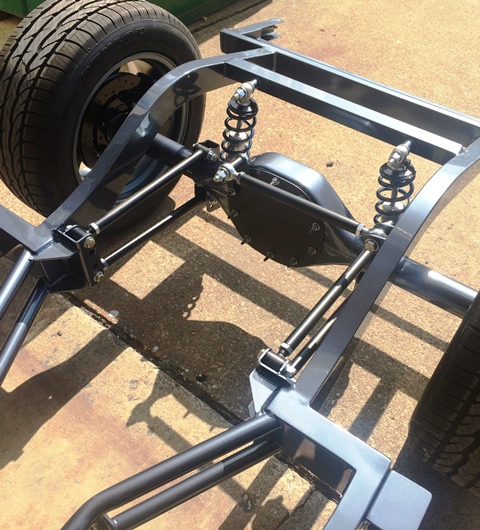

Triangulated 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $14,045
Narrowed rear frame rails, 2″ each side, Parallel 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $15,790
Rear rails narrowed up to 23″ wide , 4-Link, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $16,110
1937-41 Willys Car & truck frame with Tubular X-member, Chevy motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular Coil-over spring IFS, remain. power or new manual rack & pinion and one of the following rear suspension:
Triangulated 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $14,900
Narrowed rear frame rails, 2″ each side, Parallel 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $16,645
Rear rails narrowed up to 23″ wide , 4-Link, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. $16,965
1937-41 Willys Car & truck frame with Tubular X-member, Chevy motor mounts, Automatic Transmission mount, Brake pedal with booster mount, *1988-96 Corvette front suspension (non refurbished), reman. power rack & pinion, 12″ brakes, front sway bar, Rebound adjustable front & rear coil-overs, narrowed rear frame rails, *1988-96 Corvette rear end (Dana 36 model/non refurbished), narrowed hub width, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width. $19,405
