Borgeson Steering Shaft & U-joints

Borgeson Steering Universal Joints and Shaft

 Borgeson needle bearing u-joints have the distinct advantage of lasting much longer than non-needle bearing u-joints. Borgeson recommends only the needle bearing u-joints for use on street vehicles. These u-joints are made of specially selected steel and stainless for strength and longevity so the sealed precision needle bearings never need maintenance. Needle bearing u-joints outlast non-needle bearing joints by a factor of 10 to 1. These needle bearing joints have zero backlash (radial play) for more precise steering and a better feel for the road. Borgeson u-joints are machined in our factory on state of the art CNC equipment in South Carolina. UPS shipping is added.

Borgeson Steering lay-out Document

 _______________________________________________________________________________________

Steel U-joints

3/4″DD on both ends, Steel U-joint             014949        $75.33

9/16″, 26 spline to 3/4″ DD Steel U-joint     014909         $75.33

3/4″, 36 spline to 3/4″ DD Steel U-joint       013449         $75.33

1″, 48 spline to 3/4″ DD Steel U-joint          014349         $75.33

1″, DD to 3/4″ DD Steel U-joint                   014952         $75.33

3/4″DD on both ends, Steel Double U-joint Special Order Item    024949     $145

Borgeson U-joint, Steel, single Borgeson U-joint, Steel, double

Borgeson U-joint single dimension sheet Borgeson U-joint double dimension sheet

 _______________________________________________________________________________________

Steel Couplers and Adapters

9/16″, 26 spline to 3/4″ smooth bore steel coupler,     310900      $19.39

3/4″, 36 spline to 3/4″ DD Steel coupler,                     313449      $19.39

1″, 48 spline to 3/4″ DD Steel coupler,                        314349      $44.64

1″ DD to 3/4″ DD Steel coupler,                                  315249      $45.97

Borgeson Steel Couplers

 _______________________________________________________________________________________

Steel steering shaft , 3/4″ DD style

18″ long,  409418           $22.50

36″ long,  409436           $35.10

Borgeson Double D shaft

 _______________________________________________________________________________________

Borgeson Steering Shaft Support Bearings

Anytime that you have more than 2 moving joints in your steering shaft (u-joints, rag joints), you need a support bearing. If you have 3 moving joints, you need 1 support. If you have 4 moving joints, you need 2 supports, and so on. Call if you need help on this.

3/4″ steering shaft support bearing                  700000             $31.01

Weld-on bracket for 700000                 PA-BORG-7000           $26.99

Polished 3/4″ steering shaft billet support        660000             $59.81

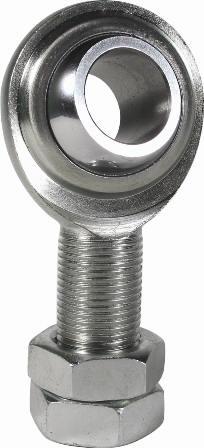

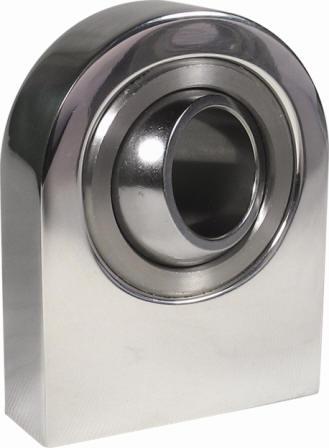

Borgeson Steel Support       Borgeson Billet support

 _______________________________________________________________________________________

Polished Stainless U-joints

9/16″, 26 spline to 3/4″, 36 spline U-joint, Special Order Item   123409    Inquire

3/4″, 36 spline to 3/4″, 36 spline U-joint, Special Order Item     123434    Inquire

1″, 48 spline to 3/4″, 36 spline U-joint, Special Order Item        123452    Inquire

1″, DD to 3/4″, 36 spline U-joint, Special Order Item                 124334    Inquire

3/4″, 36 spline on both ends, Double U-joint, Special Order Item    143434   Inquire

Borgeson U-joint Polished Stainless Single      Borgeson U-joint Polished Stainless double

U-joint single dimension sheet 01 U-joint double dimension sheet 01

 _______________________________________________________________________________________

Polished Stainless steering shaft , 3/4″ x 36 spline on both ends (splined on ends)

4″ up to 16″ long, in 2″ increments, Special Order Item             Inquire

18″ up to 20″ long, in 2″ increments, Special Order Item           Inquire

Borgeson Splined Polished Stainless Shaft
