 These frames & rolling chassis are designed to fit 1935, 1936, 1937, 1938, 1939 and 1940 Ford cars. Also 1935, 1936, 1937, 1938, 1939, 1940 & 1941 Ford 1.2 ton, short bed Ford trucks. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

 Unlike the original Ford frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

 Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

 Bare Ford frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, body mounts and gas tank mount bolted in place, rear coil-over crossmember and bumper mounting holes. Starting at $6,490



Example of rolling chassis, contact us for a quote.

 Ford frame, with Tubular X-member, Chevy performance motor mounts (Ford/Chrysler motor mount upgrade available), Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS with front sway bar, new manual rack & pinion (power rack upgrade available) and one of the following rear suspension:



 Triangulated 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake.                $14,685



 Narrowed rear frame rails, 2″ each side, Parallel 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake.                $16,350



 Rear rails narrowed up to 23″ wide, 4-Link, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake.                $16,665



 Ford frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, *1988-96 Corvette front suspension brackets, reman. power rack & pinion, 1” front sway bar, Rebound adjustable front & rear Ride Tech HQ coil-overs, narrowed rear frame rails, *1988-96 Corvette rear brackets for *narrowed hub width, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width, for customer supplied Corvette parts                 $16,560

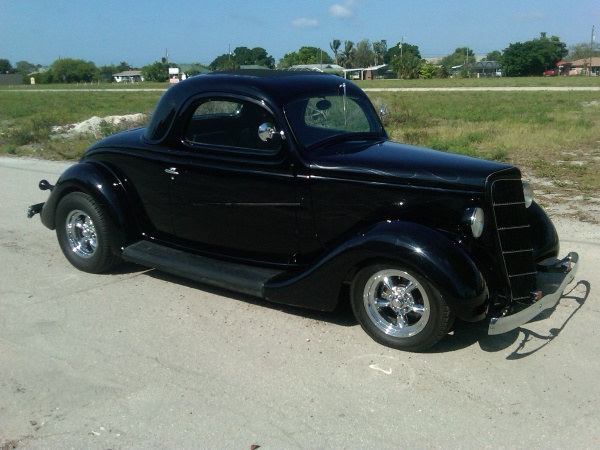

1935 Ford featuring Progressive Automotive chassis
1935 Ford featuring Progressive Automotive chassis
1936 Ford truck featuring Progressive Automotive chassis
1936 Ford truck featuring Progressive Automotive chassis
Progressive Automotive 1935-40 car/1935-41 truck chassis with optional parts
Progressive Automotive 1935-40 car/1935-41 truck chassis with optional parts



Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette suspension & optional parts
Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette suspension & optional parts

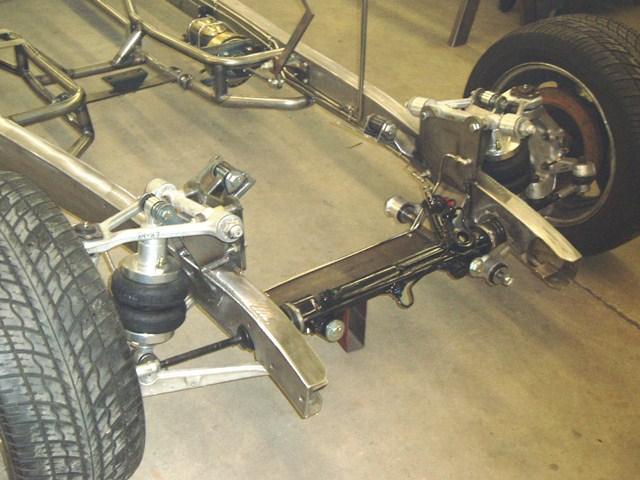

Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS with optional parts
Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS with optional parts



1940 Ford featuring Progressive Automotive chassis
1940 Ford featuring Progressive Automotive chassis

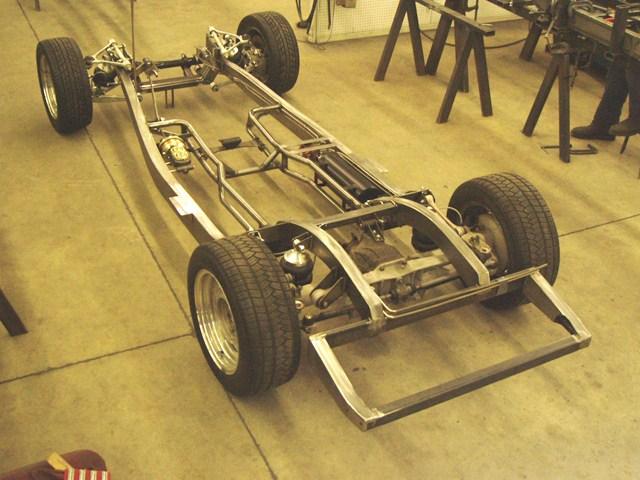

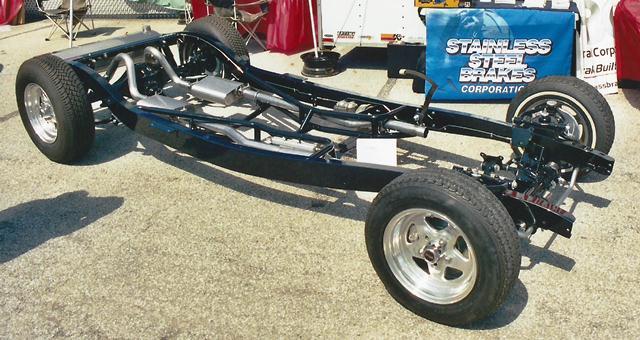

Progressive Automotive 1935-40 car/1935-41 truck chassis
Progressive Automotive 1935-40 car/1935-41 truck chassis

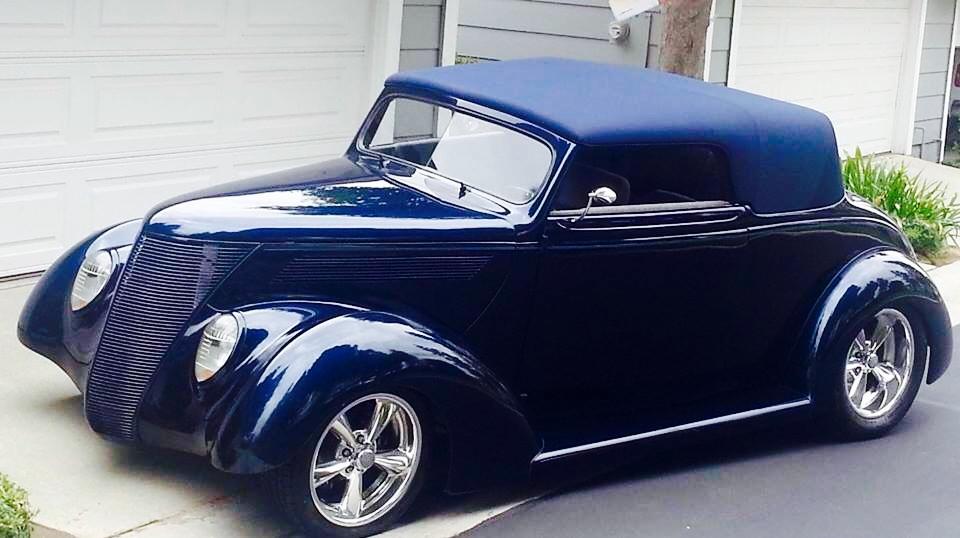

1940 Ford convertible featuring Progressive Automotive chassis
1940 Ford convertible featuring Progressive Automotive chassis

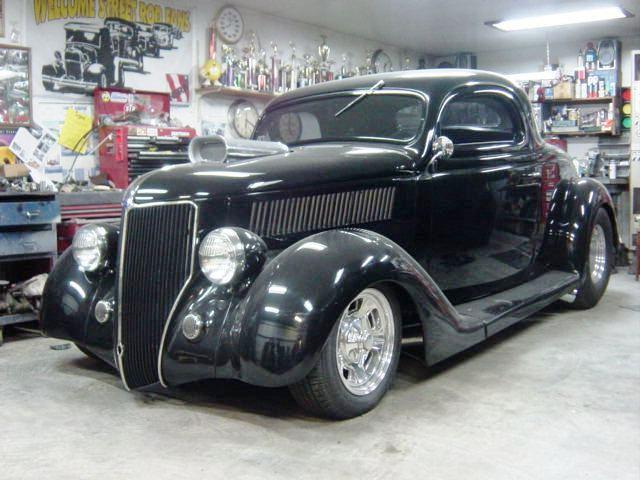

1936 Ford coupe featuring Progressive Automotive chassis
1936 Ford coupe featuring Progressive Automotive chassis

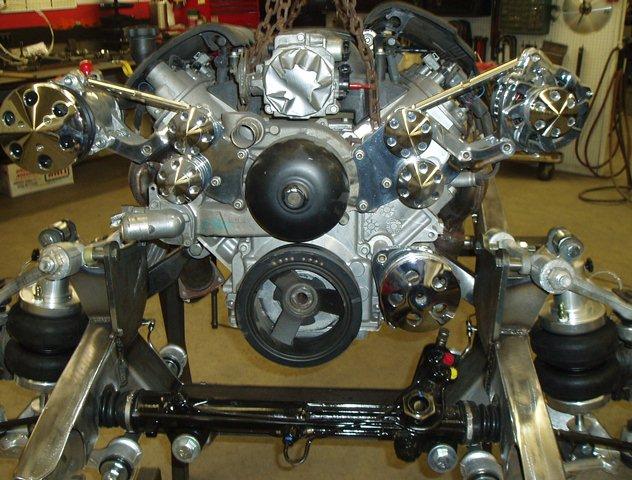

Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IFS & Ride Tech HQ ShockWaves
Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IFS & Ride Tech HQ ShockWaves



Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IFS & Ride Tech HQ ShockWaves
Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IFS & Ride Tech HQ ShockWaves

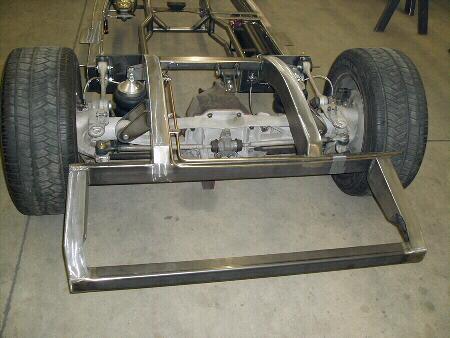

Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IRS & Ride Tech HQ ShockWaves
Progressive Automotive 1935-40 car/1935-41 truck chassis with C4 Corvette IRS & Ride Tech HQ ShockWaves



Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS & rear frame rails narrowed more than 2”/4-Link
Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS & rear frame rails narrowed more than 2”/4-Link

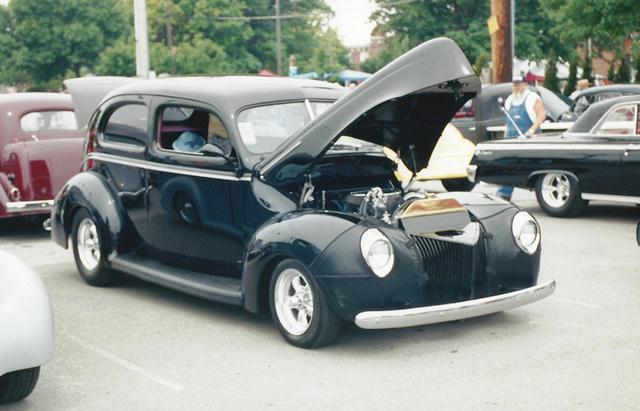

1940 Ford sedan featuring Progressive Automotive chassis
1940 Ford sedan featuring Progressive Automotive chassis



Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS and optional parts
Progressive Automotive 1935-40 car/1935-41 truck chassis with Tubular IFS and optional parts
1940 Ford sedan featuring Progressive Automotive chassis
1940 Ford sedan featuring Progressive Automotive chassis



Progressive Automotive 1935-40 car/1935-41 truck chassis with optional parts
Progressive Automotive 1935-40 car/1935-41 truck chassis with optional parts
