1955 (2nd Ser.)-59 Chevrolet Truck Frames & Chassis

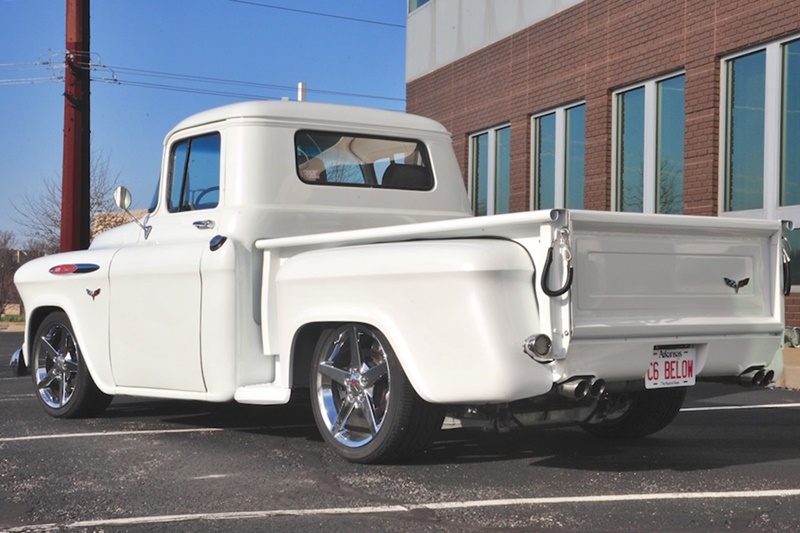

1956 Chevrolet truck featuring Progressive Automotive custom ride height chassis
1956 Chevrolet truck featuring Progressive Automotive custom ride height chassis

 These frames & rolling chassis are designed to fit 1955 (2nd Ser.), 1956, 1957, 1958 & 1959 Chevrolet, ½ ton, trucks. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

 Unlike the original Chevrolet frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

 Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

Bare Chevrolet truck frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, front cab mounts spot welded in place, rear cab mounts supplied, rear coil-over crossmember and bumper mounting holes. Specify 1955 (2nd Ser.) -57 or 1958-59. Starting at $5,955



Example of rolling chassis, contact us for a quote.

Chevrolet truck frame, with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS with front sway bar, new manual rack & pinion (power rack upgrade available), Parallel 4-bar, Rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with parking brake. Specify 1955 (2nd Ser.) -57 or 1958-59                $14,985



Chevrolet truck frame with Tubular X-member, Chevy performance motor mounts, Automatic Transmission mount, Brake pedal with booster mount, 1988-96 Corvette front suspension brackets, reman. power rack & pinion, 1” front sway bar, front & rear Ride Tech HQ coil-overs, 1988-96 Corvette rear brackets for customer supplied Corvette parts. Specify 1955 (2nd Ser.) -57 or 1958-59                 $13,285



Chevrolet truck frame with Tubular X-member, Brake pedal with booster mount, C5 Corvette suspension points, Ride Tech HQ front & rear coil-overs. *Uses stock C5 Corvette cradles. Specify 1955 (2nd Ser.)-57 or 1958-59                 $17,530



Chevrolet truck frame with Tubular X-member, Brake pedal with booster mount, C6 Corvette (non-Z06 rear) suspension points, Ride Tech HQ front & rear coil-overs. *Uses stock C6 Corvette cradles. Specify 1955 (2nd Ser.)-57 or 1958-59                 $17,530



Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with C6 Corvette mounting points and Ride Tech HQ coil-overs

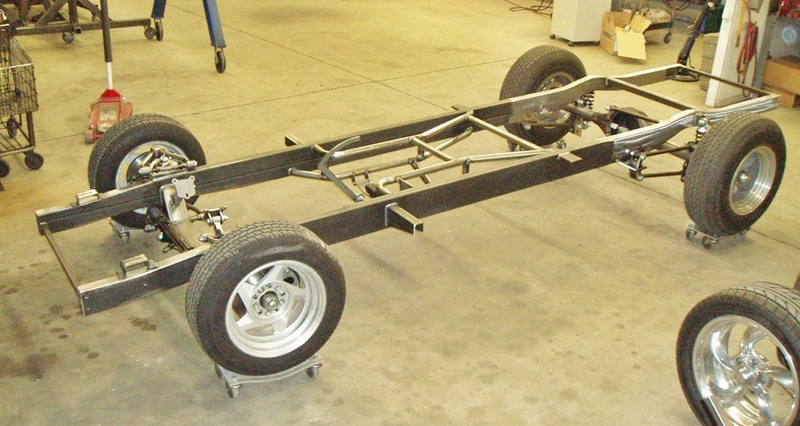

Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Parallel 4-bar, Ride Tech HQ ShockWaves and optional parts
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Parallel 4-bar, Ride Tech HQ ShockWaves and optional parts
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Parallel 4-bar, Ride Tech HQ ShockWaves and optional parts
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Parallel 4-bar, Ride Tech HQ ShockWaves and optional parts

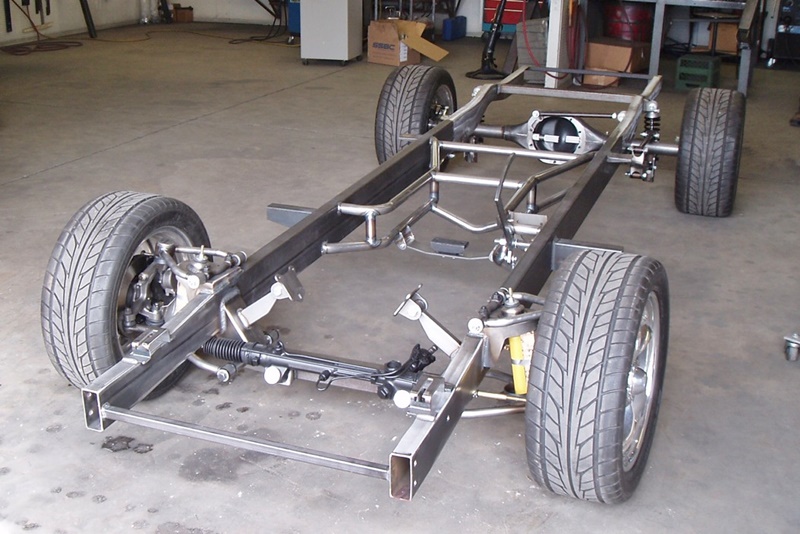

Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Tubular IFS, Parallel 4-bar, Ride Tech HQ coil-overs & optional parts
Progressive Automotive 1955 (2nd Ser.) -57 Chevrolet truck chassis with Tubular IFS, Parallel 4-bar, Ride Tech HQ coil-overs & optional parts

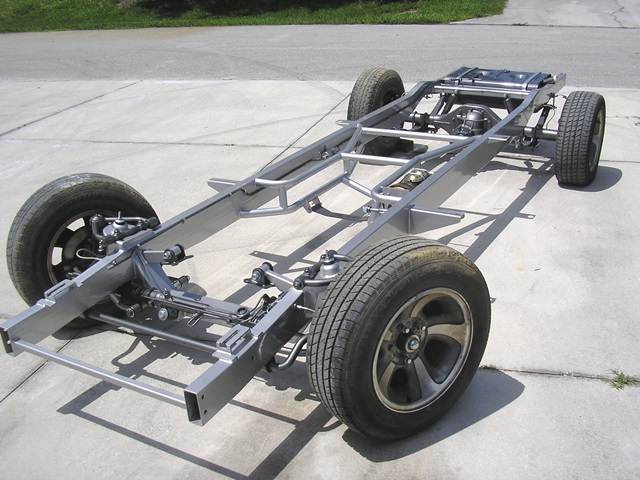

Custom ride height Progressive Automotive 1955 (2nd Ser.) Chevrolet truck chassis with C4 Corvette suspension & optional parts
Custom ride height Progressive Automotive 1955 (2nd Ser.) Chevrolet truck chassis with C4 Corvette suspension & optional parts
Custom ride height Progressive Automotive 1955 (2nd Ser.) Chevrolet truck chassis with C4 Corvette rear suspension & Ride Tech ShockWaves
Custom ride height Progressive Automotive 1955 (2nd Ser.) Chevrolet truck chassis with C4 Corvette rear suspension & Ride Tech ShockWaves
