Brake Boosters, Brake & Clutch Master Cylinders and Brake Line Kits

Cadimum plated 7" booster, Wilwood brake & clutch master cylinders shown
Cadimum plated 7″ booster, Wilwood brake & clutch master cylinders shown



 These brake boosters and master cylinders can be used on drum/drum, disc/drum and disc/disc combinations. 7” dual diaphragm are compact for mounting under the body. UPS Shipping included for the Continental United States. Call for Firewall mounted applications.



Cast Iron Master Cylinders

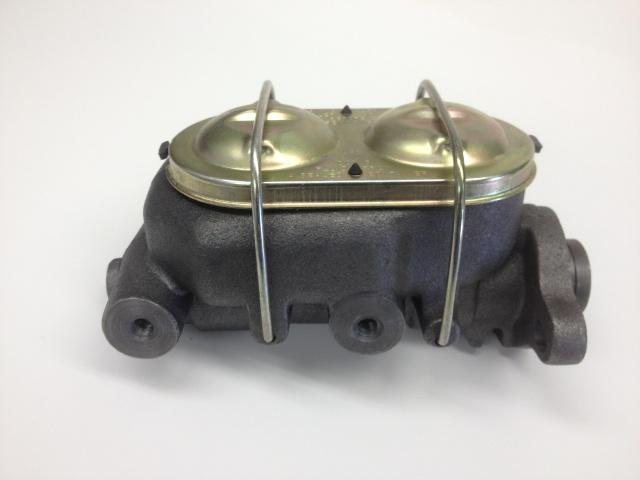

Cast Iron master cylinder, ports on both sides.     PA-MC1     $69

Billet Remote Fill  for Cast Iron master cylinder.     PA-MC1-RF     $195

Cast Iron master cylinder, ports on both sides
PA-MC1 shown
Billet Remote Fill  for Cast Iron master cylinder
PA-MC1-RF



Wilwood Master Cylinders

Bare Aluminum, 1” bore          260-8555           $200
Black E-coated, 1” bore           260-8555-BK    $240
Ball Burnished, 1” bore            260-8555-P      $240

Bare Aluminum, 1.125” bore (Special Order Item)   260-8556           $200
Black E-coated, 1.125” bore (Special Order Item)   260-8556-BK    $240
Ball Burnished, 1.125” bore (Special Order Item)   260-8556-P      $240



260-8555 shown
260-8555 shown

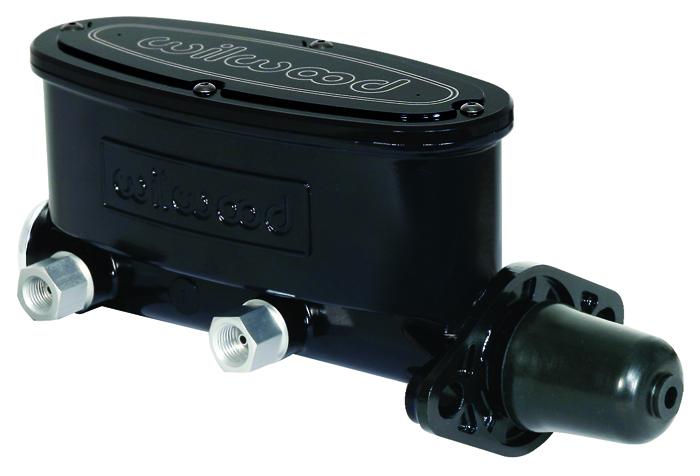

260-8555-BK shown
260-8555-BK shown
260-8555-P shown
260-8555-P shown



Vacuum Boosters

7” Dual Diaphragm booster, Cadmium plated.       PA-PB2         $120

Chrome 7” Dual Diaphragm booster.       PA-PB2-C        $135

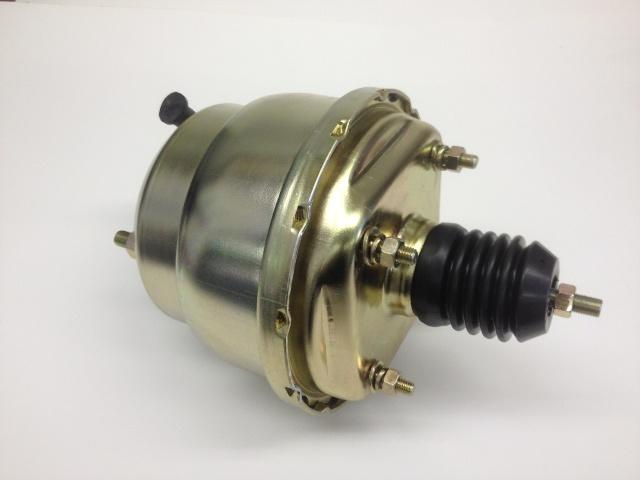

PA-PB2 shown
PA-PB2 shown



 Hydraulic Clutch Master Cylinder

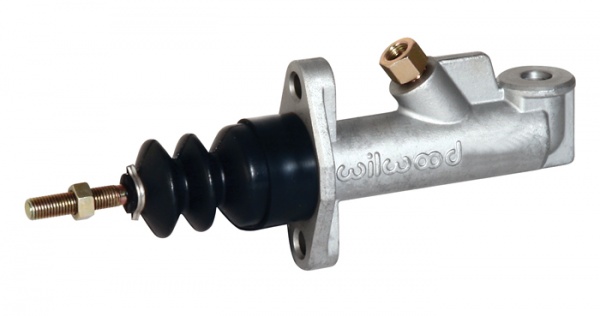

Wilwood bore hydraulic master cylinder with Billet Remote Fill for our Clutch/Brake pedal assemblies.

Bare Aluminum, .75” bore,  PA-WW-KK         $195
Black E-coated, .75” bore,  PA-WWB-KK       $205

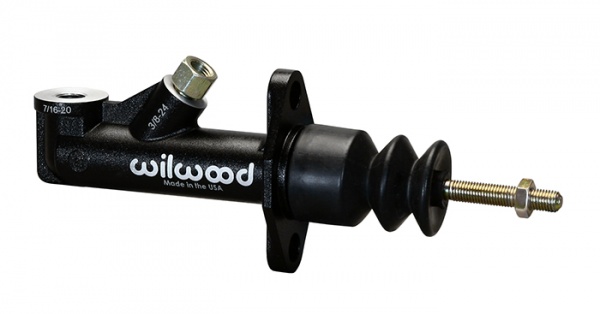

PA-WW-KK shown
PA-WW-KK shown
PA-WWB-KK shown
PA-WWB-KK shown

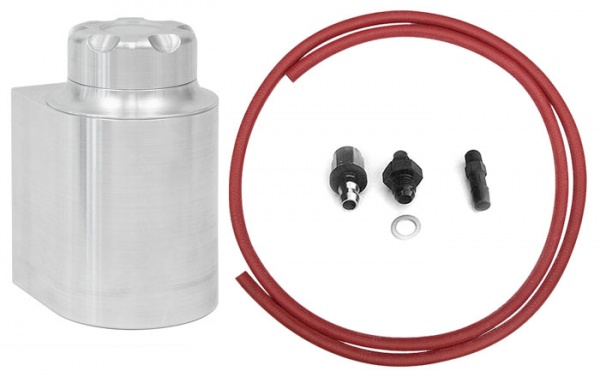

Single Kugel remote fill reservoir kit included with both PA-WW-KK and PA-WWB-KK kits
Single Kugel remote fill reservoir kit included with both PA-WW-KK and PA-WWB-KK kits



Brake Line Kits

Need a simple solution for running your own brake lines without 5 trips to the store? We offer kits to make it simple. These are designed for our brake and master cylinders. Stainless kits include stainless steel SAE 45 degree double flare nuts. UPS Shipping included for the Continental United States.

Front Brake Line Kits

Front brake kit for calipers with 10MM x 1.5MM port. 18” braided stainless steel hoses. Typically Cast Iron Metric calipers.

Steel Line kit & weld-on hose brackets.                 BHK-SRF          $130

Stainless Steel Line kit with stainless frame bulkheads     BHK-SRF-SS     $255

BHK-SRF shown
BHK-SRF shown



Front brake kit for calipers with 10MM x 1.75MM port. 18” braided stainless steel hoses. Typically C4 Corvette calipers.

Steel Line kit & weld-on hose brackets.                 BHK-SWF          $160

Stainless Steel Line kit with stainless frame bulkheads     BHK-SWF-SS     $280


Front brake kit for most Wilwood calipers with 1/8″ NPT. 18” braided stainless steel hoses.

Steel Line kit & weld-on hose brackets.                 BHK-WW           $110

Stainless Steel Line kit with stainless frame bulkheads     BHK-WW-SS     $295



Rear Brake Line Kits

Rear brake kit for calipers brakes with 10MM x 1.5MM port.  16” braided stainless steel hoses & weld-on hose brackets. Typically Cast Iron Metric rear calipers.

Steel Line kit                 BHK-9DB             $125

Stainless Steel Line kit for SAE 45 degree double flare     BHK-9DB-SS        $180

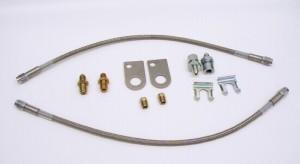

BHK-9DR shown
BHK-9DR shown





Rear brake kit for calipers brakes with 10MM x 1.75MM port.  18” braided stainless steel hoses & weld-on hose brackets. Typically C4 Corvette calipers.

Steel Line kit                 BHK-SWR           $165

Stainless Steel Line kit for SAE 45 degree double flare     BHK-SWR-SS      $180



Rear brake kit for most Wilwood calipers with 1/8″ NPT. 16” braided stainless steel hoses & weld-on hose brackets.

Steel Line kit                 BHK-9WWR           $110

Stainless Steel Line kit for SAE 45 degree double flare     BHK-9WWR-SS     $180


Hard Line Kits

3/16” hard line coil of brake line, stainless line clamps, stainless buttonhead bolts, fittings and rear proportioning valve. Both SAE 45 degree double flare fittings.

Steel Line kit with (1) 25′ coil                BHK-HLK             $110

Stainless Steel Line kit with (2) 16′ coils     BHK-HLK-SS        $275



Residual Valve Kits

Needed when the brake master cylinder is lower than the bleeders on the calipers or wheel cylinders. Specify type of brakes being used, front and rear. *Note, when not using a remote fill reservoir

Steel fittings for 3/16″ tube/SAE 45 degree double flare                RES-RV          $46

Stainless fittings for 3/16″ tube/SAE 45 degree double flare          RES-RV-SS     $70

RES-RV shown
RES-RV shown

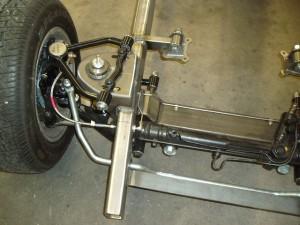

Front brake line routing, shown
Front brake line routing, shown

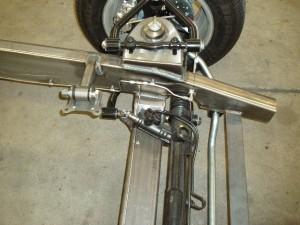

Front brake line routing, shown
Front brake line routing, shown

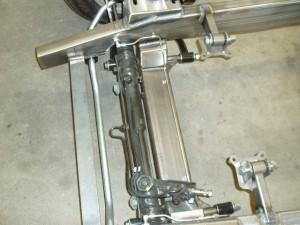

Front brake line routing, shown
Front brake line routing, shown

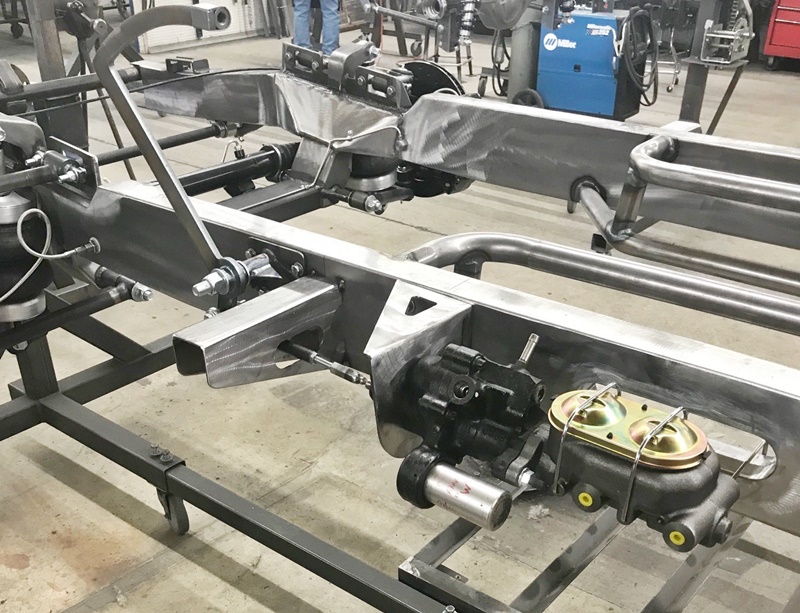

Brake master cylinder routing, shown
Brake master cylinder routing, shown

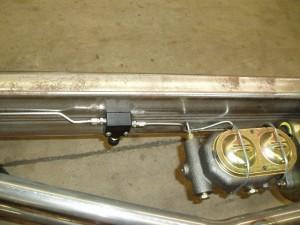

Proportioning valve placement, shown
Proportioning valve placement, shown

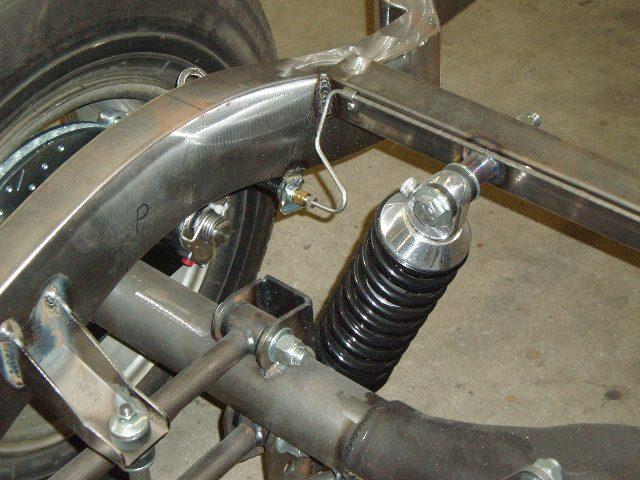

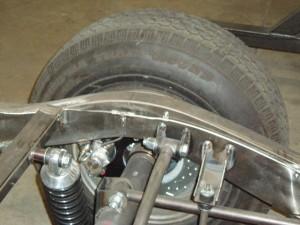

Rear brake line routing, shown
Rear brake line routing, shown



Rear brake line routing, shown
Rear brake line routing, shown
