C5/C6 Corvette Front & Rear Suspension Kit & Parts

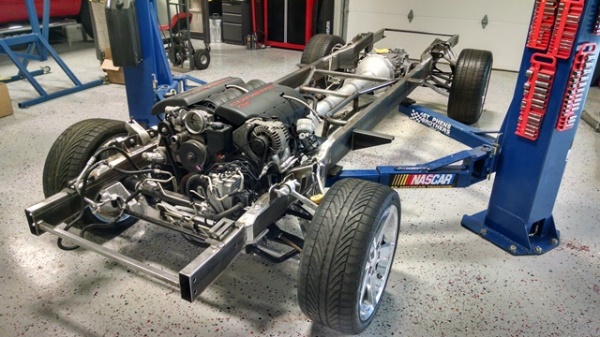

Chassis with Engine and Tires Attached

C5/C6 Corvette Front & Rear Suspension Kit & Parts

Our universal C5/C6 frame kits are designed for the DIY Guy to incorporated C5 or C6 (Non-Z06) suspension into their chassis.  Frame rails are designed for the stock C5/C6 aluminum cradles to bolt to and incorporate our custom built coil-overs by Ride Tech coil-overs. UPS Shipping included for the Continental United States.



Additional Parts & Upgrades, such as Ride Tech coil-overs & sway bars, are listed at the bottom of this page

The C5/C6 front kits includes the following:
    (2) 26″ long Front frame rails with Upper Arm/Upper Coil-over mounts,
    (4) Lap plates & Boxing sections
    (1) Stainless Front Cradle to frame rail mounting kit
    (1) Stainless Front Upper Arm/Upper Coil-over mount hardware

           1997-2005 C5 Front Kit                                  C5-VFS-UV   $2,195

           2006-2013 (Non-Z06) C6 Front Kit                 C6-VFS-UV   $2,195



The C5/C6 rear kit includes the following:
(2) 23″ long Rear frame rails with Upper Arm/Upper Coil-over mounts
(4) Lap plates & Boxing sections
(1) Stainless Rear Cradle to frame rail mounting kit
(1) Stainless Rear Upper Arm/Upper Coil-over mount hardware

           1997-2005 C5 Kit                                  C5-VRS-UV   $1,500

           2006-2013 (Non-Z06) C6 Kit                 C6-VRS-UV   $1,500



C5/C6 rear kit example
Progressive Automotive C5-VRS-UV display shown with Ride Tech HQ coil-overs & C5 parts

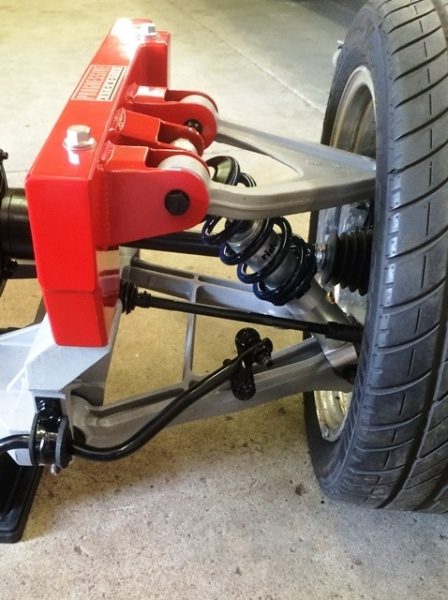

Progressive Automotive C5-VFS-UV shown installed with Ride Tech coil-overs
Progressive Automotive C5-VFS-UV shown installed with Ride Tech coil-overs

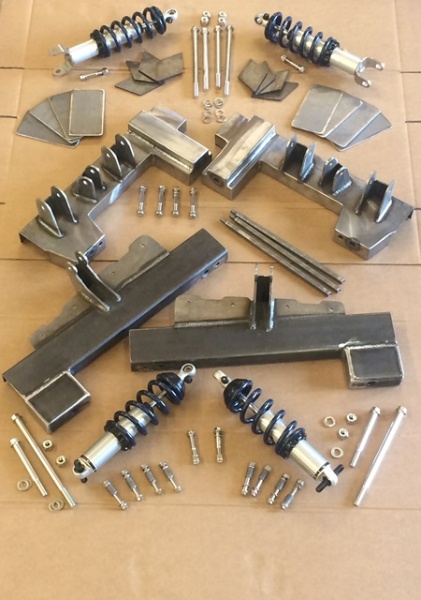

Progressive Automotive C5/C6 front & rear kits with otpianal Ride Tech coil-overs & wheelbase space fixtures shown
Progressive Automotive C5/C6 front & rear kits with otpianal Ride Tech coil-overs & wheelbase space fixtures shown

Additional Parts & Upgrades

Wheelbase Space fixtures

Bolts to torque tube to set wheelbase while installing  (Specify your wheel base and C5 or C6 suspension)

           C5/6-TTS-UV     $159



Ride Tech Coil-Overs

*More information on these can be found on our Ride Tech Coil-over & Shockwave page

           Front HQ coil-overs, rebound adjustable                        C5/6-VFS-HQ            $610

           Front TQ coil-overs, rebound adjustable, dual stage compression           C5/6-VFS-TQ   $2,120

           Rear HQ coil-overs, rebound adjustable                        C5/6-VRS-HQ            $790

           Rear TQ coil-overs, rebound adjustable, dual stage compression           C5/6-VRS-HQ   $2,120



Ride Tech Muscle Bars, Front & Rear Sway Bars

           C5 Front, 1.25″ dia. Bolt-in bar                                 C5/6-FSB   $1,025

           C5 Rear, 1.25″ dia. Bolt-in bar                                  C5-RSB   $1,025

           *C6 Rear, 1.25″ dia. Bolt-in bar                                  C6-RSB   $1,025
                      *If using OEM mufflers, they must be modified



RTFSB1 shown
RTFSB1 shown
RTFSB1 shown
RTFSB1 shown













RTRSB1 shown
RTRSB1 shown

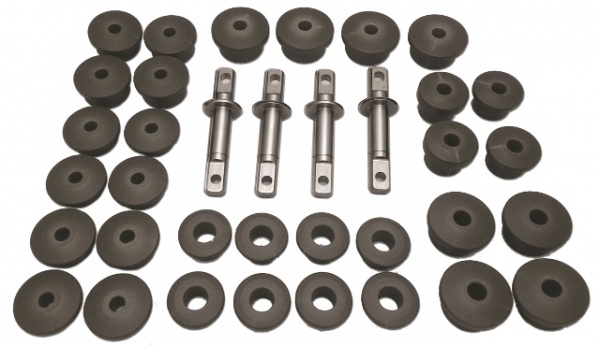

Ride Tech Delrin bushing kit
This bushing designed to eliminates control arm shift, common with factory bushings. Reduction in deflection creates a more consistent, predictable handling. No modifications are necessary. Replaces all 16 control arm bushings and includes new 4130 chromoly  trunnions.                                              C56-DBS          add $775

C56-DBS shown
C56-DBS shown
