 These frames & rolling chassis are designed to fit 1932 Ford cars & 1932-33 (1st Ser.) trucks. Proudly manufactured at our shop in Baltimore Ohio.

 Our hot rod frames feature our new boxed frame rails, constructed from 10-gauge (true 1/8”) sheet steel. Our rails mimic the original shape, contours, reveal and widths of the original frame, unlike mandrel bent box tube. The rails are fully welded, and the corner welds smoothed.

 Unlike the original Ford frame, our street rod frames & chassis incorporate our designed tubular crossmember. Not only does this create a stronger frame, but it allows room for modern transmissions.

 Many other chassis options are available, such as Custom-built ride heights, Air ride, Wilwood brake upgrades, new 3rd members, etc. Skeletal crating for LTL shipping included at no cost. Call or email for information and pricing for your specific needs.



Example of bare frame, contact us for a quote.

 Bare frame with boxed rails, radiator support crossmember, tubular X-member with automatic transmission mount, running board brace holes,  rear coil-over crossmember and bumper mounting holes. Starting at $5,965

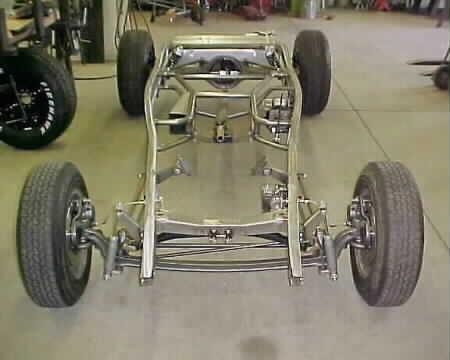

Example of rolling chassis, contact us for a quote.

 Fframe, with Tubular X-member, Chevy performance motor mounts (Ford/Chrysler motor mount upgrade available), Automatic Transmission mount, Brake pedal with booster mount, Tubular coil spring IFS, new manual rack & pinion and one of the following rear suspension:

 Triangulated 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $13,870



 Narrowed rear frame rails, 2″ each side, Parallel 4-barwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $15,725



 Rear rails narrowed up to 23″ wide, 4-Linkwith R-joints, Ride Tech HQ rebound adjustable coil-overs, new 9″ Ford housing, axles and disc brakes with black Lokar parking brake cables.                $16,000



 Rear rails narrowed for C4 Corvette rear suspension, rebound adjustable coil-overs, *narrowing of customers supplied C4 rear parts, new cover bushings, half shaft u-joints and steel camber bars. *Rear end can be narrowed to 58.5″ hub width.                $15,740
